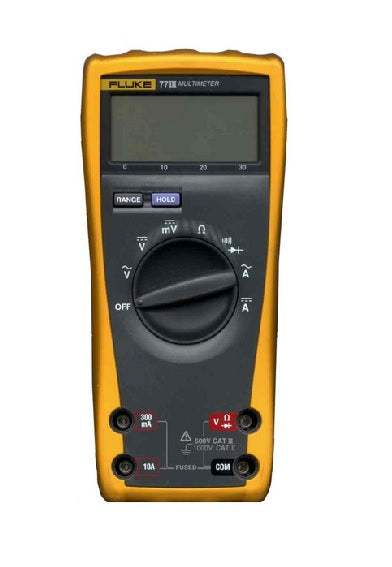

• 77-III Fluke Multimeter
1 1
Used
Compare
lab tested

77-III Fluke Multimeter Used

77-III Fluke Multimeter Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Volts, ohms, amps, continuity, diode test
  • mA current range for improved low-current readings
  • 0.3% basic dc voltage accuracy
  • 3200 count resolution
  • Digital display with analog bargraph
  • Integral molded holster with Flex-Stand
  • Touch Hold to capture readings
  • 10 MΩ input impedance, analog bar graph
  • Sleep mode preserves battery life
Share on
View full details
More Details
Specifications
Datasheets

Specifications:

Basic Accuracy (± % of reading)

DC Voltage

  • Range: 320 mV -1000V
  • Accuracy: 0.3%
  • Best Resolution: 0.1 mV

AC Voltage

  • Range: 3.2V -1000V
  • Accuracy: 2%
  • Best Resolution: 1 mV

DC Current

  • Range: 32 mA -10A
  • Accuracy: 1.5%
  • Best Resolution: 0.01 mA

AC Current

  • Range: 32 mA -10A
  • Accuracy: 2.5%
  • Best Resolution: 0.01 mA

Resistance

  • Range: 320Ω - 32 MΩ
  • Accuracy: 0.5%
  • Best Resolution: 0.1Ω

Safety

  • 1000V, AC/DC maximum voltage between any terminal and earth ground. Conforms to Cat III 600V and CAT II 1000V per ANSI/ISA-S82.01-94, EN 61010-1: 1993, CSA C22.2 No. 1010.1-92. Protected from overvoltage transients to 6 kV

Surge protection

  • 6 kV peak per IEC 1010.1-92.

Fuse protection

  • 440 mA, 1000V AC/DC Min interrupt rating 10 kA.; 11A, 1000V AC/DC Min interrupt rating 17kA.

Environmental Specifications

  • Operating Temperature: 0°C to +50°C
  • Storage Temperature: -40°C to +60°C
  • Humidity (Without Condensation): 0% - 90% (0°C - 35°C); 0% - 70% (35°C - 50°C)
  • Operating Altitude: 2000 m

The Fluke 77-III offers exactly the right fit for a wide range of measurements. The 77-III is truly an all-round performer. The 77-III has all the features and functions for a wide range of industrial applications packaged in an ergonomic case with integrated holster.

Model No

77-III

Condition

Used

Manufacturer

Fluke

Ac voltage

1 kV

Dc voltage

1 kV

Resolution

3.5

Type

Handheld

Fluke 23III 77III
