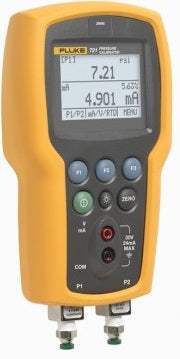

• 721-3615 Fluke Pressure Calibrator
1 1
New
Earn Loyalty with Rewards
Compare

721-3615 Fluke Pressure Calibrator New

721-3615 Fluke Pressure Calibrator New

$3,487.99
$3,487.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Features:

  • Two isolated, stainless steel, pressure sensors with 0.025% f.s. accuracy
  • Can be configured by selecting either a 16 psig (1.1 bar) or 36 psig (2.48 bar) low pressure sensor and then adding your choice of 7 high pressure ranges
  • External pressure module connection supports all pressure modules (29 ranges) for even more measurement capability
  • Temperature-compensation ensures accuracy in field applications
  • Pt100 RTD input for temperature measurement, accurate to 0.1°C (0.2°F) (Requires optional RTD probe sold separately)
  • Measure 4-20 mA signals
  • Internal 24 V Loop Power Supply can power a transmitter under test
  • Measure up to 30 V DC
  • Large graphic style LCD with backlight can be configured to display up to 3 inputs simultaneously (i.e. pressure 1, pressure 2, and RTD or any combination of inputs)
  • Pressure displayed in the user's choice of 19 engineering units
  • Switch test on both pressure inputs, or external pressure module
  • Operating mode layers support simple measurements to complex applications
  • Up to five frequently used setups can be stored; last setup automatically recalled on power-up
  • % error and damping functions
View full details
More Details
Specifications
Datasheets

Accessories (included):

  • Dual Sensor Pressure Calibrator
  • Soft case
  • Four (4) AA batteries
  • Manual
  • Traceable calibration certificate
  • Test leads

Specifications:

  • Range - -14 psi to +36 psi, -0.97 bar to 2.48 bar
  • Resolution - 0.001 psi, 0.0001 bar
  • Accuracy - 0.025 % of full scale

Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications. Ranges: 36 psi (low) 1,500 psi (high).

Model No

721-3615

Condition

New

Manufacturer

Fluke

FLUKE 721 SERIES
Compare All Models
