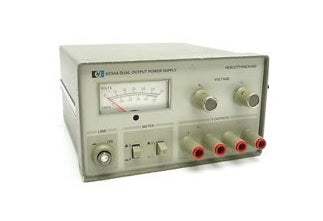

The Agilent Model 6234A is a low-cost, dual-output bench power supply with two independently adjustable and isolated power sources in one compact unit. Both of the dc power sources are of the constant voltage/current limit type with each output voltage being adjustable continuously over a 0 to 25 V range. The maximum current available per output is 0.2 A and is limited automatically to prevent over-load.
The Agilent 6234A offers considerable flexibility in the user with output voltages that can be arranged to provide identical or different voltages that can be arranged to provide identical or different voltages in any polarity combination with respect to 0 or other common positive or negative voltage points. The outputs can also be connected in series to provide up to 50 V at 0.2 A. Both sources are fully isolated to permit either of the output terminals to be grounded.
With pushbutton switches, users can select either voltage or current for each output to be monitored on the unit's meter. Other features include two multiple-turn controls for precise voltage setting, regulation to 0.01% and ripple and noise of less than 200 microvolts rms.
With dimensions of only 93 mm high, 157 mm wide and 210 mm deep (3.64" x 6.17" x 8.25"), the Agilent 6234A supply takes up a minimum amount of bench space. The unit can be powered from a 115 V or an optional 230 V, 47-63 Hz ac input.
Model No
6234A
Condition
Used
Manufacturer
Agilent
Current
200 mA
Voltage
25 V
Power
75 W
