19035 Chroma HiPot

19035 Chroma HiPot

Shipping calculated at checkout.
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 5KVAC & 6KV DC Hipot Test
  • 1mΩ~50GΩ /5kV IR Test
  • 10mΩ~100kΩ DCR Test
  • 8 Channel Scanner
  • Supports 16CH scan box (19035 only)
  • High Speed Contact Check (HSCC)
  • SUB-STEP Function
  • Open / Short Check (OSC)
  • GFI Human Protection
  • Flashover Detection
  • Key Lock Function
  • RS232 Interface (standard*1)
  • GPIB & HANDLER (optional)
View full details

The quality verification test items for Wound Components primarily are AC/DC Hipot tests and Insulation Resistance (IR) tests. The Chroma 19035 Wound Component EST Scanner Series perform these and other safety tests for motors, transformers, and heater related wound products. These scanners make for reliable quality control and efficient product control when implemented for quality verification by wound component manufacturers.

The Chroma 19035 Series supports 5kVac/6kVdc high voltage output to conform with withstand voltage test requirements for wound components, and has a maximum output current up to 30mA. The Insulation Resistance (IR) test measurement ranges from 1MO to 50GO, and voltage output can be up to 5kV; while the DCR test can measure the resistance parameters of wound components and test circuit connections (contact check) before the withstand voltage test is performed.

The 19035 Series also has powerful functions for Flashover detection and Open/Short Check (OSC), as well as programmable voltage and time parameters for various characteristics of DUTs for increased testing reliability and product quality.

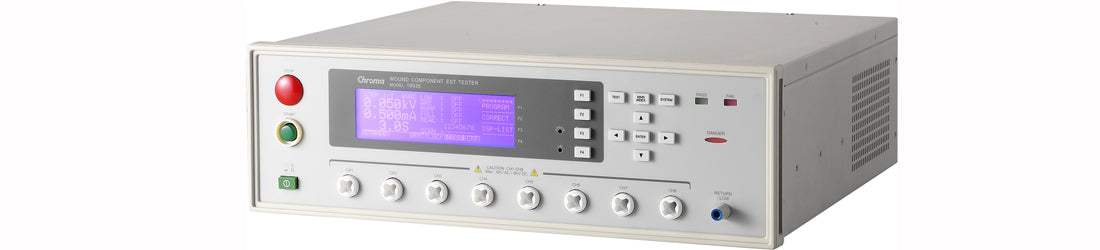

*The image is for reference only. See product specification for details.

Model No

19035
