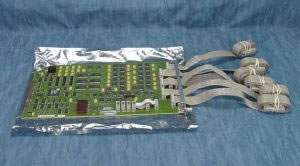

16522A Agilent Pattern Generator Used

16522A Agilent Pattern Generator Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

 Additional Features:

  • Vectors up to 200 bits wide
  • Synchronized Clock Output
  • Wait for input pattern
  • Initialize block for Repetitive Runs
  • Macros and Repeat Loops Simplify Creation of Stimulus Programs
  • ASCII Input File Format
Share on
View full details
More Details
Specifications
Manuals

The Agilent 16522A pattern generator allows you to check the functional characteristics of your system. See how your system responds to unanticipated signals or clock speeds. Correlate data captured with other Agilent HP logic analysis system modules to verify correct operation. Use the Agilent 16522A pattern generator module in automated test environments to run design qualification tests quickly, using only one instrument. Save time normally spent developing custom test hardware used for stimulus.

Model No

16522A

Condition

Used

Manufacturer

Agilent

Agilent_16522A_User_s_Guide
