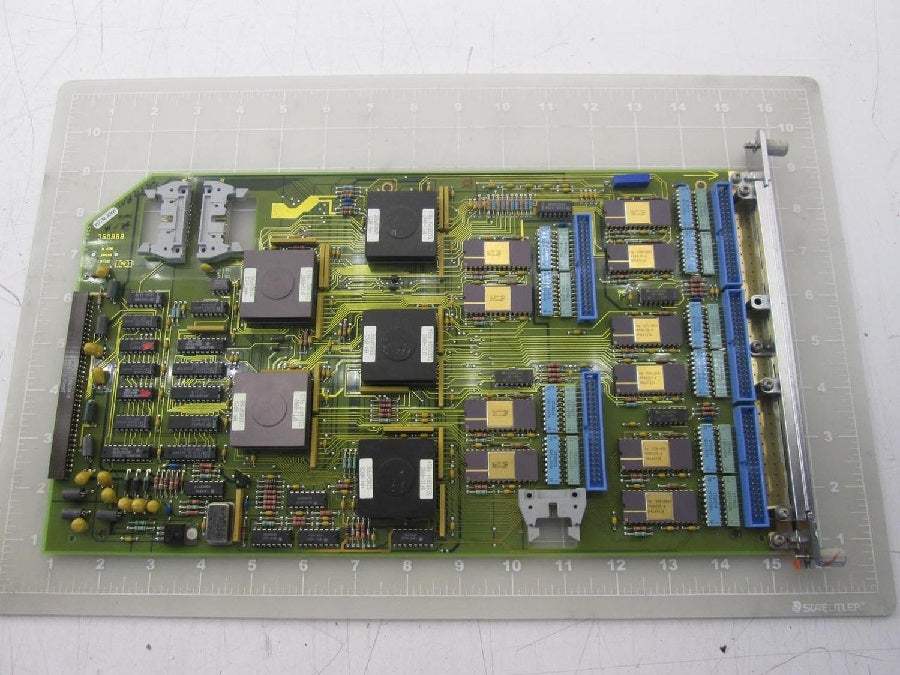

16510B Agilent Module Used

16510B Agilent Module Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Transitional timing for extended timing analyzer memory
  • Lightweight passive probes for easy hook-up
  • All channels can be used for state or timing at the maximum sample rate
  • HP-IB and RS-232C interface for programming and printer dumps
  • An external trigger BNC connector
  • Efficient package size
  • Transitional or glitch timing modes
  • 1k-deep memory on all channels
  • Glitch detection
  • Marker measurements
  • Triggering and pattern qualification
  • Overlapping of timing waveforms
  • Eight sequence levels
  • Eight pattern recognizers
  • One range recognizer
  • Time and number-of-states tagging
  • Pre-store
  • Auto-scale
  • Programmability
  • Cross-domain triggering
  • Interactive measurements
  • Mixed-mode display
  • Oscilloscope type controls in the timing analyzer
  • State Compare, Chart, and Waveform displays
Share on
View full details
More Details
Specifications

The HP 16510B logic analyzer is part of a new generation of general purpose logic analyzers with improved features to accommodate next generation design tasks. The 80-channel HP 16510B logic analyzer is capable of 100 MHz timing and 35 MHz state analysis on all channels. This analyzer is designed as a stand alone instrument for use by digital and microprocessor hardware designers. The HP 16500A mainframe has HP-IB and RS-232C interfaces for hardcopy printouts and control by a host computer

Model No

16510B

Condition

Used

Manufacturer

Agilent
