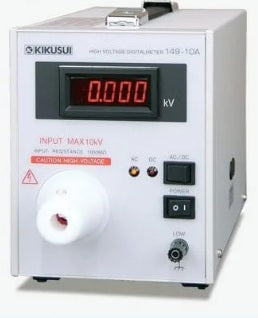

The 149-10A is a digital Voltmeter capable of measuring high voltages up to 10kV AC and DC with high accuracy. Its Input impedance: as high as 1000MΩ makes it suitable for measurement of various high-voltage circuits with high impedance. In addition, despite its small size and light weight, the high accuracy makes it easy to use as a portable calibrator.
| DC voltage | Measurement range | 0.500 kV to 10.000 kV AC/DC |
|---|---|---|
| Accuracy | ±(0.5 % of reading +0.03 % of range) | |
| Maximum allowable input voltage | DC: ±14 kV Pulse: 15 kV peak | |
| AC voltage | Measurement range | 0.500 kV to 10.000 kV AC/DC |
| Accuracy | ±(1 % of reading +0.0 5 % of range) | |
| Maximum allowable input voltage | 11 kV rms (sine wave, 50 Hz to 60 Hz) Pulse: 15 kV peak | |
| Display | 7-segment LEDs | |
| Type of voltmeter | Double integration type. For AC measurement, mean value response, sine wave rms value calibration. 3 samples/sec
|
|
| Input resistance | 1000 MΩ ±2 % | |
| Power requirement | 100 V ±10 %, 50 Hz/60 Hz | |
| Power consumption | approx. 10 VA | |
| Dimensions | External dimensions: 134W × 164H × 270D mm (5.28W × 6.46H × 10.63D in.) Maximum dimensions: 140W × 190H × 325D mm (5.51W × 7.48H × 12.80D in.) | |
| Weight | Approx. 3 kg (6.61 lb) | |
| Accessories |
Power cord: 1 TL05-TOS High voltage test leads: 1 set HTL2.5DH High voltage test lead: 1 Operation manual: 1 |
|
*The image is for reference only. See product specification for details.
Model No
Kikusui
Condition
New
Manufacturer
Kikusui
