• 11930B Keysight Technologies Adapter
1 1
New
Earn Loyalty with Rewards
Compare

11930B Keysight Adapter New

11930B Keysight Adapter New

$1,198
$1,198 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Frequency range: 5 MHz to 6 GHz
  • Insertion loss: 1.0 dB to 16 MHz to 3 GHz, 1.5 dB to 6 GHz
  • Return loss: 21 dB 16 MHz to 3 GHz, 17 dB 3 GHz to 6 GHz
  • Maximum input power levels: 3 Watts (continuous), 6 Watts (pulse, 30 ms pulse width, 10% duty cycle)
  • Limiting threshold: 30 dBm, typical
  • Maximum dc volt: 30 V
  • Maximum input power levels: 3 Watts (continuous), 6 Watts (pulse, 30 ms pulse width, 10% duty cycle)
View full details
More Details
Specifications
Datasheets

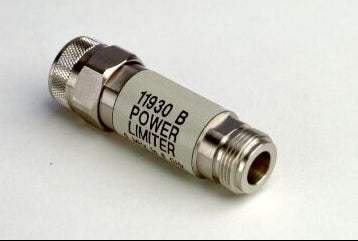

The Keysight 11930B limiter provides input protection for a variety of RF and microwave instrumentation. Failure mode for the limiter is either an open circuit or a short circuit to ground, thereby protecting the instrument from damage. The Keysight 11930B provides the same protection to spectrum analyzers and sources. .

The Keysight 11930B is furnished with a type-N connector. This power limiter offers low insertion loss and linear operation at low input levels while providing protection against transients or short duration overloads.

Model No

11930B

Condition

New

Manufacturer

Keysight

Keysight Technologies 11930A 11930B
Keysight Technologies 11930B Power Limiter
