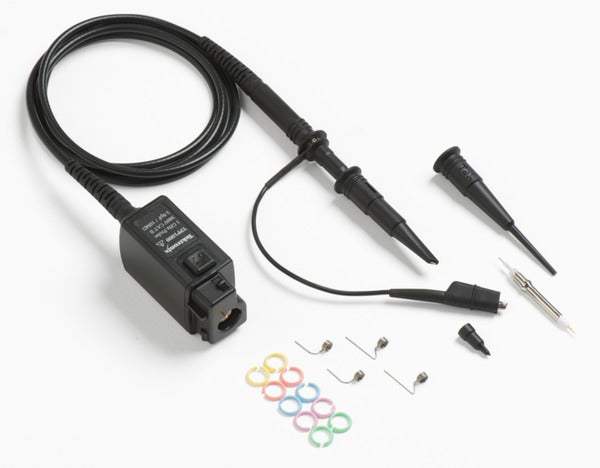

TPP0502 Tektronix Voltage Probe New

$707.75

$707.75 ~~$745~~

Shipping calculated at checkout.

Product variants

Estimated Delivery in

2-3

business days

Additional Features:

500 MHz Probe Bandwidth
2 MΩ, 12.7 pF Input Capacitance
2X Attenuation Factor
300 V CAT II Input Voltage
Designed for use with the MSO/DPO4000B and MSO/DPO5000 Series Oscilloscopes
Compact Probe Head for Probing Small-geometry Circuit Elements
Small Probe Body for Enhanced Visibility to the Device-Under-Test
Rigid Tip for Secure Device-Under-Test Connectivity
Replaceable Probe Tip Cartridges
Large Accessory Set for Versatile Connectivity
Integrated oscilloscope and probe measurement system provides intelligent communication that automatically scales and adjusts units on the oscilloscope display to match the probe attenuation
Built-in AC compensation optimizes signal path across the entire frequency range

View full details

More Details

Specifications

Datasheets

Standard Accessories:

Rigid tip 3.8 mm
Flex ground spring SHORT 3.8 mm
Long ground spring
Alligator ground (6 in.)
Hook tip (regular)
Hook tip (micro)
IC cap (universal) 3.8 mm

The TPP0502 offers the industry’s highest bandwidth (500 MHz) and lowest attenuation factor (2X) for making low-voltage measurements such as ripple, a common measurement on the output of power supplies. The low capacitive loading of the TPP0502 means long ground leads can also be used on this probe with minimal impact on measurement quality, providing today’s engineer with the flexibility to move around their design without worrying about ground lead length.

Model No

TPP0502

Condition

New

Manufacturer

Tektronix

Frequency

500 MHz

Voltage

300 V

Tektronix_TPP0250_TPP0502_TPP0500B_TPP1000
