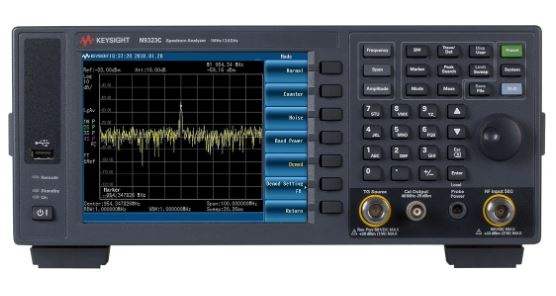

N9323C Keysight Spectrum Analyzer New

N9323C Keysight Spectrum Analyzer New

$22,071
$22,071 $21,626
Shipping calculated at checkout.
Optional:
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Provides fast RF spectrum analysis from 1 MHz to 13.6 GHz
  • Comes equipped with a tracking generator for stimulus-response tests
  • Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
  • Supports AM / FM, ASK / FSK demodulation analysis suites for Internet of Things transmitter characterization
  • Enables you to automatically implement up to 20 predefined measurements and reduce test setup time by 95% with the task planner feature
  • Provides straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys
View full details
More Details
Specifications
Options
Datasheets

Tough-to-Beat Microwave Performance up to 13.6 GHz

Achieve higher productivity with the Keysight N9323C basic spectrum analyzer (BSA). Get proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements.

Basic Spectrum Analyzer (1 MHz - 13.6 GHz)

Keysight designed its BSA series spectrum analyzers for general-purpose spectrum analysis and low-cost manufacturing applications, helping you to achieve higher productivity on a smaller budget - whether you are tuning an RF circuit of an IoT module, hunting for noise for a system, fighting for higher throughput, or teaching students in a classroom.

These easy-to-afford BSA spectrum analyzers put together a just-enough performance, and superior reliability, assisting you in addressing common RF-microwave test and measurement challenges easier and faster.

Efficiency and Flexibility at their Best

In the quest of getting more done for less, we also equip the BSA series spectrum analyzers with an array of optional capabilities, that either enhance the performance of the analyzers or add more test capabilities for the analyzers, such as EMI emission test, stimulus/response test, and IoT signal demodulation analysis.

Model No

N9323C

Condition

New

Manufacturer

Keysight

Frequency

13.6 GHz

AMA

AM/FM modulation analysis

BB1

Baseband input

DMA

ASK/FSK modulation analysis

EMC

EMI filters and quasi-peak detector

G01

GPIB Interface

MNT

Spectrum monitor with spectrogram record and playback

P04

Preamplifier , 4 GHz

P07

Preamplifier , 7 GHz

P13

Preamplifier , 13.6 GHz

P20

Preamplifier , 20 GHz

PFR

Precision frequency reference

PWM

USB average power sensor support for U2000 series

PWP

USB peak and average power sensor support for U2020/U2040 X-series

RM4

Reflection measurement , Requires TG4 , for N9321C

RM7

Reflection measurement , requires option TG7 , for N9322C

SCN

Channel scanner

SEC

Security features

TG4

Tracking generator , 4 GHz

TG7

Tracking generator , 7 GHz

TMG

Time-gated spectrum analysis

TPN

Task planner for test automation

UK6

Commercial calibration certificate with test data

Y1820A

Hard transit case

Y1821A

Rack mount kit

Y1822A

Rack mount kit with handle

Keysight_Technologies_N9323C_Data_Sheet
