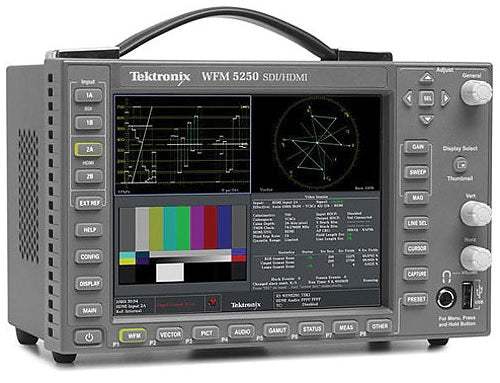

WFM5250 Tektronix Service Monitor Used

WFM5250 Tektronix Service Monitor Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Provides ideal solution for basic video and audio (with Option AUD) monitoring needs
  • Video Formats: HD-SDI, SD-SDI, 3G-SDI (Option), Dual Link, HDMI
  • Audio Formats: Embedded (Option)
  • Measurements: Waveform & Vector, Loudness Metering (Option), Closed Caption (Option), Subtitles (Option), ANC Data (Option), Gamut
  • Ideal for space-constrained environments with 3RU height, half-rack width, short-depth (5.5 in.)
  • 4-pin XLR DC power input with AC power adapter for both AC/DC operation
  • Equipped with two Serial Digital Inputs (SDI) and two High Definition Multimedia Interface (HDMI) inputs with High-bandwidth Digital Content Protection (HDCP):
  • Comes standard with auto-detection of 3G/HD/SD-SDI, Dual Link and HDMI video formats (3G-SDI requires Option 3G)
  • HDCP support on HDMI input and HDMI output for connectivity with consumer electronics products such as Set Top Box, DVD/Blu-ray disk player
  • Two-channel Simultaneous Monitoring (Option SIM)
  • 16-channel embedded AES/EBU audio simultaneous monitoring support with Multichannel Surround Sound 1 display and flexible Lissajous display (Option AUD)
  • Audio Loudness monitoring to ITU-R BS.1770-3/1771, EBU R 128, and ATSC A/85 recommendations (Option LOUD and AUD)
  • Provides patented Diamond and Arrowhead displays for color gamut compliance monitoring
  • Spearhead and Luma Qualified Vector displays facilitate precise color adjustment for post production applications (Option PROD)
  • Offers stereoscopic 3D video displays for camera alignment and production/post-production applications (Option S3D)
  • Comprehensive Data Monitoring helps to quickly resolve difficult content quality and reliability issues (Option DATA)
  • Simple 3G/HD/SD color bar and pathological signal generator (Options GEN and 3G) for troubleshooting signal paths and equipment
  • Offers variety of monitoring displays:
  • Patented Timing and Lightning displays makes facility and interchannel timing easy
  • Waveform display of external reference (Black Burst or Tri-Level Sync)
  • Black Picture and patented Frozen Picture Detection Extensive
  • Alarms, status reporting, and error logging for 10,000 events simplifies error correction tasks
  • User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks
  • Provides unmatched display versatility:
  • Flexible Quad Tile Display tailored to various applications needs to increase productivity
  • TandemVu Display for efficient camera adjustments of luma and chroma
  • Full Screen mode that maximizes display size for precise adjustments
  • Designed with unmatched usability:
  • 32 instrument presets for quick recall of common configurations tailored to colorists, editors, or operators
  • Front-panel USB port enables easy transfer of presets, screenshots, and error log
  • Front-panel headphone port for easy monitoring of audio channels
  • High-brightness display with crisp, high-resolution LED backlight, ideal for indoor and outdoor usage
  • SNMP/Ethernet remote interface capabilities and GPI control facilitate centralized monitoring and control
  • DVI-I external display output for easy connection to digital or analog XGA display
Share on
View full details
More Details
Specifications

The Tektronix Video WFM5250 Compact Video Waveform Monitor provides an ideal solution for basic video and audio (with Option AUD) monitoring needs with an integrated high-brightness, low-power consumption LED backlit display in a convenient 3RU, half-rack, short-depth form factor, suitable for space-constrained environments. This versatile instrument can accept power from a 12 V DC source, a battery, or a 100-240 V AC converter. SDI input provides multiformat support for HD-SDI (SMPTE 292), SD-SDI (ITU-R BT.601) and Dual Link (SMPTE 372) signal formats. The instrument provides automatic format detection for 3G/HD/SD-SDI on each input. Option 3G is required for support of Level A and Level B SMPTE 425/424 formats. The WFM5250 has HDMI inputs with HDCP support that can be connected to encrypted (HDCP) consumer devices for monitoring the video and audio signals.

Optional audio monitoring support for 16 channels of Embedded AES/EBU Audio (Option AUD) provides a variety of audio level bar monitoring, multichannel surround sound display 1 and flexible Lissajous display. A front-panel headphone port can be used for easy compliance verification of digital audio without the need for an additional piece of equipment.

This instrument provides the reliability of the Telestream waveform monitors family in a portable, basic monitoring product. The WFM5250 offers uncompromised monitoring quality with sharp CRT-like traces, patented Gamut displays, picture thumbnail, display freeze, and an error log for 10,000 events for efficient content compliance verification.

Model No

WFM5250

Condition

Used

Manufacturer

Tektronix
