• TP325 Power Designs DC Power Supply
1 1
Used
Compare
lab tested

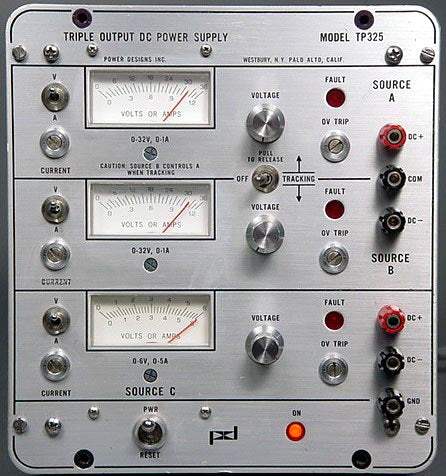

TP325 Power Designs DC Power Supply Used

TP325 Power Designs DC Power Supply Used

$195
$195 $0
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Triple output: 2x (0-32V/1A), 1x (0-6V/5A)
  • Input: 105-125V, 55-440 Hz, 200 W
  • Load Regulation: .01% + 1 MV
  • Line Regulation: .01% + 0.5 MV
  • Stability: .02% + 3 MV
  • Features OV Protection
  • No derating
  • All outputs may be operated simultaneously at full capacity for a maximum of 94 VA
  • The two 32V sources may be operated in series to provide 0-64 VDC, 0-1A in any polarity with respect to chassis or left floating
  • The 0-6 VDC Source may be operated in any polarity with respect to chassis or left floating
  • Independent adjustment of each output voltage utilizing 10-tun potentiometers with .05% resolution
  • Separate current limiting adjustment for each output
Share on
View full details
More Details
Specifications
Datasheets

The Power Designs TP325 is a triple output DC Power Supply with 2x 0-32VDC/0-1A and 1 0-6VDC/0-5A outputs. The TP325 has automatic voltage tracking of the 0-32 VDC souces to +/-0.1% by means of a panel toggle switch.

Model No

TP325

Condition

Used

Manufacturer

Power Designs

Current

1 A

Voltage

32 V

Power

3 W

Power Designs TP325
