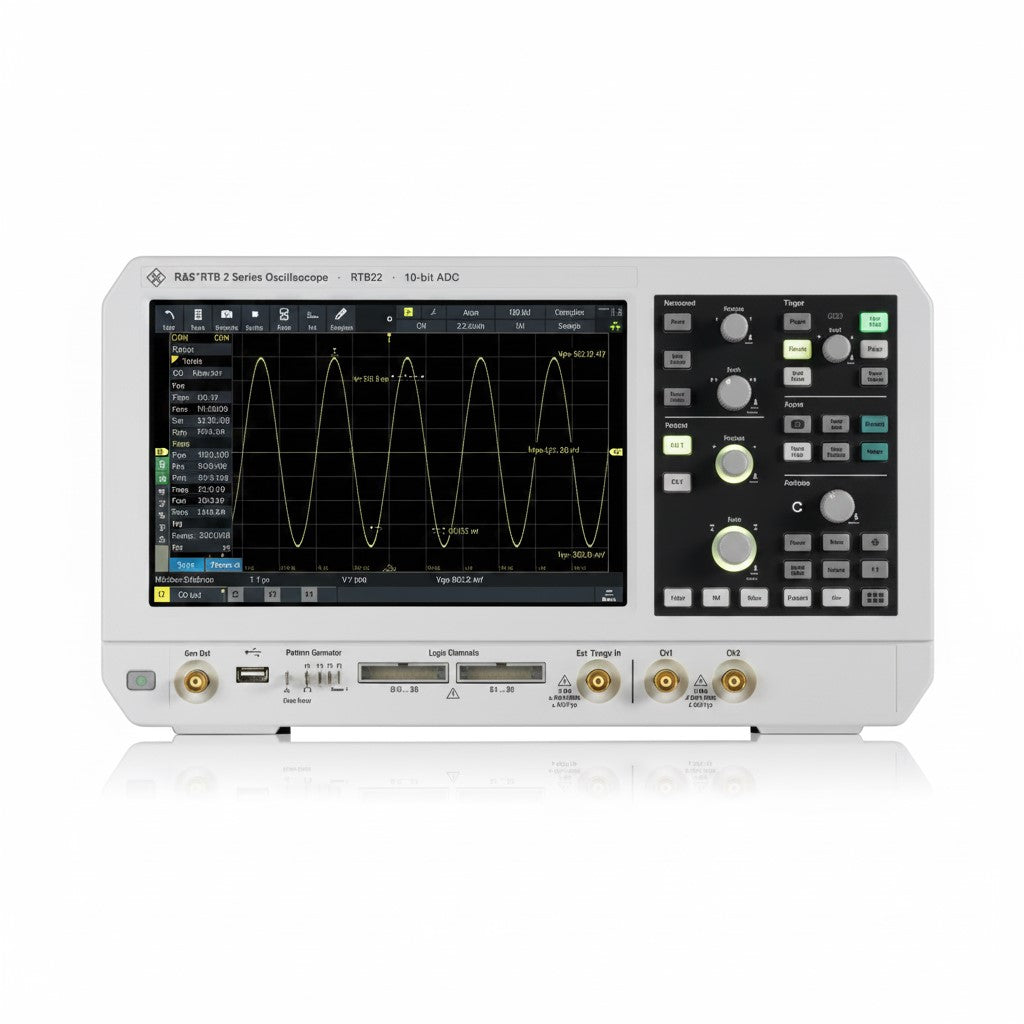

RTB22-300 Rohde & Schwarz Digital Oscilloscope NEW

Name: RTB22-300 Rohde & Schwarz Digital Oscilloscope NEW
Brand: Rohde & Schwarz
SKU: 70255
Price: 5150.0 USD
Availability: InStock

$5,150

$5,150 $0

Shipping calculated at checkout.

Product variants

Estimated Delivery in

5 - 7

business days (based on availability)

Request a Quote To Get An EDU Discount

Features:

2 channels / 300 MHz bandwidth
Mixed signal functionality added via probes option RTB2-B1 (sold separately)
Sample rate 2.5 GS/s
10-bit analog to digital converter
10 Msample memory
10.1-inch touchscreen
Arbitrary wave form generator
History and segmented memory

View full details

More Details

Specifications

Datasheets

Manuals

Digital Oscilloscope (2 Channel, 300 MHz, Arbitrary Waveform Generator, History and Segmented Memory)

The R&S RTB 2 series oscilloscopes combine the power of ten with smart operating concepts, making them the ideal all-purpose tool for students, hobbyists, technicians and engineers. As a successor to the highly capable R&S RTB2000, the R&S RTB 2 series features a 10-bit ADC, 10 Msample memory, and a 10.1-inch touchscreen.

Additionally, the R&S RTB 2 series includes an integrated arbitrary waveform generator history and segmented memory capabilities. Furthermore, all RTB 2 models are MSO-ready, allowing the use of up to 16 digital channels with the appropriate probes.

These oscilloscopes offer four times the vertical resolution of standard 8-bit ADCs while maintaining fast sampling rates at all times. With the largest display and highest resolution in their class, they provide extensive capabilities for university laboratories, troubleshooting embedded designs during development, and for production and service departments.

The R&S RTB 2 series is the perfect solution for anyone needing precise and reliable measurements.

Note: This oscilloscope is MSO ready. Logic probes must be purchased separately to enable MSO functionality.

Several Versions Available

The RTB 2 oscilloscope series offers 2- and 4- channel models with four different bandwidths. Please see the table below for an overview of the models. See the specification sheet for more details.

Signal Analysis: Quick Results

The R&S RTB 2 features a customized Rohde & Schwarz engineering 10-bit A/D converter that delivers a fourfold improvement compared to conventional 8-bit A/D converters. The increased resolution results in sharper waveforms with more signal details that would otherwise be missed. One example is the characterization of switched-mode power supplies. The voltage across the switching device must be determined during the on/off times within the same acquisition.

Capture More Time at Full Bandwidth

The R&S RTB 2 offers a class leading memory depth. 10 Msamples per channel are available, even 20 Msamples in interleaved mode. This is 10 times more than similar oscilloscopes in the same instrument class. The user captures longer acquisition sequences even at high sampling rates, e.g. when analyzing transients of switched-mode power supplies, and thus benefits from more detailed analysis results.

Standard Segmented Memory Function

Every R&S RTB 2 is equipped with standard segmented memory functionality. Protocol-based signals with communications gaps such as I2C or SPI can be captured over several seconds or minutes. The variable segment size optimally utilizes the 160-Msample memory. In history mode, previous acquisitions in the maximum segmented memory depth of 160 Msamples are available for further analysis.

Logic Analysis with MSO Option (Sold separately)

Every R&S RTB 2 is MSO ready, which allows the R&S RTB2-B1 option to enable up to 16 additional digital channels. The oscilloscope captures and analyzes signals from analog and digital components of an embedded design – synchronously and time-correlated to each other. For example, the delay between A/D converter input and output can conveniently be determined with the cursor measurements.

Note: The MSO probes are sold separately.

Waveform and Pattern Generator

The R&S RTB-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware. Apart from the common sine, square/pulse, ramp and noise waveforms, it outputs arbitrary waveforms and 4-bit signal patterns. Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms. Predefined patterns including I2C, SPI, UART and CAN/LIN can be used.

Digital Voltmeter

The R&S RTB 2 features a 3-digit voltmeter (DVM) and 6-digit frequency counter on each channel for simultaneous measurements. Standard measurement functions include DC, AC+DC (RMS) and AC (RMS).

Frequency Analysis Mode

Difficult-to-find faults often result from the interaction between time and frequency signals. The FFT function of the R&S RTB 2 is activated at the push of a button and by simply entering the center frequency and span. Thanks to the R&S RTB 2 oscilloscopes’ high-performance FFT functionality, signals can be analyzed with up to 128 kpoints. Other practical tools include cursor measurements and autoset in frequency domain.

Mask Test Mode

Mask tests quickly reveal whether a specific signal lies within defined tolerance limits. By using statistical pass/fail evaluation, they assess quality and stability of a DUT. Signal anomalies and unexpected results are quickly identified. When the mask is violated, the measurement stops. Each violation can generate a pulse output at the AUX-OUT connector on the R&S RTB 2. This pulse output can be used to trigger actions in the measurement setup.
