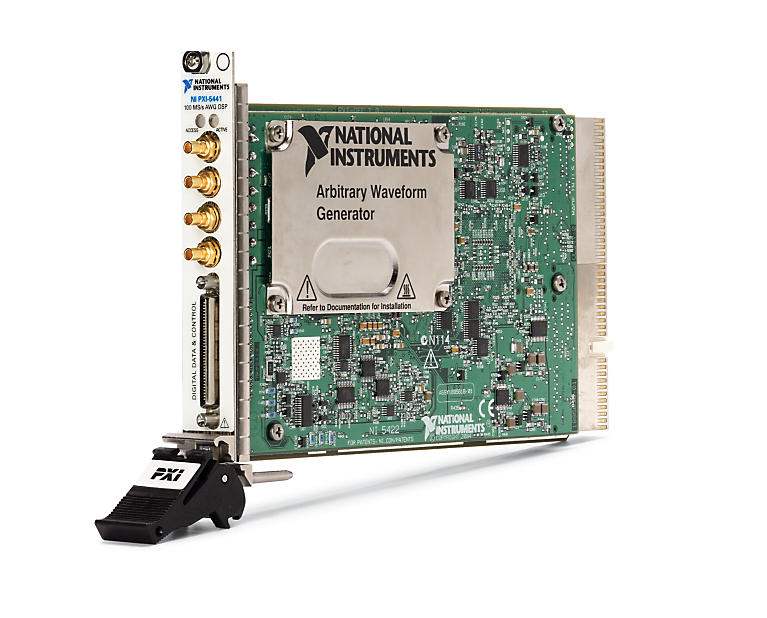

PXI-5441 National Instruments PXI Used

PXI-5441 National Instruments PXI Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Carrier frequencies up to 43 MHz with 355 nHz resolution
  • Quadrature digital upconversion
  • FIR and CIC interpolation filters
  • 16-bit resolution, 100 MS/s sampling rate
  • 400 MS/s effective sampling rate with DAC interpolation
  • 32, 256, 512 MB of onboard memory
  • Multimodule synchronization with < 20 psrms skew
  • Continuous data streaming up to 100 MB/s
  • Operating Systems: Windows 2000/NT/XP
  • Calibration: Gain and offset self-calibration; 2 year external calibration cycle
Share on
View full details
More Details
Specifications

The PXI-5441 is a 43 MHz arbitrary waveform generator capable of generating user-defined, arbitrary waveforms, standard functions including sine, square, triangle, and ramp, as well as signals that require onboard signal processing. Some of these signal processing operations include FIR and CIC interpolation filters, digtal prefilter gain, numerically-controlled oscillator, and I/Q mixing for quadrature digital upcoversion. The PXI-5441 also features advanced synchronization and data streaming capabilities.

Model No

PXI-5441

Condition

Used

Manufacturer

National Instruments
