Kikusui PMX70-1E DC Power Supply New

Kikusui PMX70-1E DC Power Supply New

$1,680
$1,680 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

🎓 Request a Quote To Get An EDU Discount

Features:

  • Built-in memory sequencing
  • Output off timer function
  • Output-on/off delay function
  • Soft start and soft stop function
  • Equipped with output off timer and a bleeder circuit selection functions.
  • Watchdog
  • external control (Ext Ctrl) functions detect malfunctions
View full details
More Details
Specifications
Datasheets

Based on the popular “Dropper × Interface” design, these compact,
low-noise power supplies feature standard communications control!

The PMX-E Series compact, high-performance DC power supplies provide constant voltage (CV) and constant current (CC) operation. This series provides the low-noise performance distinctive to the series-dropper method and comes with the communication interfaces essential for system integration: LAN, USB, and RS-232C. LAN communication enables control and monitoring using web browsers on PCs, smartphones, and tablets.

The PMX-E Series also has analog external control and output monitoring, multiple protection functions, a memory function, and other features, ensuring high versatility. Ergonomically designed for benchtop use, all models come with front-facing output terminals that improve work efficiency and allow users to easily connect load harnesses.
The 18 V and 35 V models are equipped with remote sensing to reduce voltage drop caused by the resistance of the load wiring.

Level up from PMX-A! Enhanced features make the new series even more convenient!

  • Equipped with output off timer and a bleeder circuit selection functions.
  • Watchdog and external control (Ext Ctrl) functions detect malfunctions.
  • Communication speed is improved by reducing jitter during SCPI communication control (approximately 100 ms for PMX-A vs. approximately 2 ms for PMX-E using the OUTPut command; reference values)

New features users have been asking for!

Built-in memory sequencing

Now you can combine up to three waveforms without the PC!

Output off timer function

Output can be turned off by upper/lower voltage, upper/lower current, or time settings.

Output-on/off delay function

Set a delay between pressing the OUTPUT key and when the output turns on or off. This function is an excellent choice for timing control based on the load’s characteristics.

Model PMX18-2E PMX18-5E PMX35-1E PMX35-3E PMX70-1E PMX110-0.6E
AC input
Rated input rating 100 VAC, 50 Hz / 60 Hz, single phase (117 / 200 / 217 / 234 VAC available as factory options)
Input voltage range ± 10 %
Input frequency range 47 Hz to 63 Hz
Inrush current (MAX) 50 A 60 A 45 A 60 A 65 A 55 A
Power 150 VA 310 VA 150 VA 310 VA 230 VA 210 VA
Output
Rating Output voltage 18.00 V 18.00 V 35.00 V 35.00 V 70.00 V 110.0 V
Output current 2.000 A 5.000 A 1.000 A 3.000 A 1.000 A 0.600 A
Output power 36 W 90 W 35 W 105 W 70 W 66 W
Voltage Setting range 0 V to 18.90 V 0 V to 18.90 V 0 V to 36.75 V 0 V to 36.75 V 0 V to 73.50 V 0 V to 115.5 V
Setting resolution *1 1 mV 2 mV 10 mV
Setting accuracy ± (0.2 % of setting + 0.1 % of rating)
Power fluctuation*2 ±1 mV ±1 mV ±3 mV ±3 mV ±5 mV ±7 mV
Load variation*3 ±2 mV ±5 mV ±3 mV ±4 mV ±5 mV ±7 mV
Transient response *4 50 μs 100 μs
Ripple noise (rms) *5 0.5 mV (1 mV) 0.5 mV 0.5 mV (1 mV) 0.5 mV 1 mV 2 mV
Rise time *6 Rated load 120 ms or less 150 ms or less 120 ms or less
No load 120 ms or less 150 ms or less 120 ms or less
Fall time *7 Rated load 50 ms or less 50 ms or less 50 ms or less
No load 120 ms or less 150 ms or less 120 ms or less
Max. remote sensing compensation voltage 0.6 V (one‑way) –
Temperature coefficient (TYP) 100 ppm/℃
Current
Setting range 0 A to 2.10 A 0 A to 5.25 A 0 A to 1.05 A 0 A to 3.15 A 0 A to 1.050 A 0 A to 0.630 A
Setting resolution *1 0.1 mA
Setting accuracy ± (0.3 % of setting + 0.1 % of rating)
Line regulation ±5 mA ±2 mA ±2 mA
Load regulation ±5 mA ±5 mA ±5 mA
Ripple noise (rms) *5 1 mA 2 mA 1 mA 1 mA 1 mA
Temperature coefficient (TYP) 200 ppm/°C

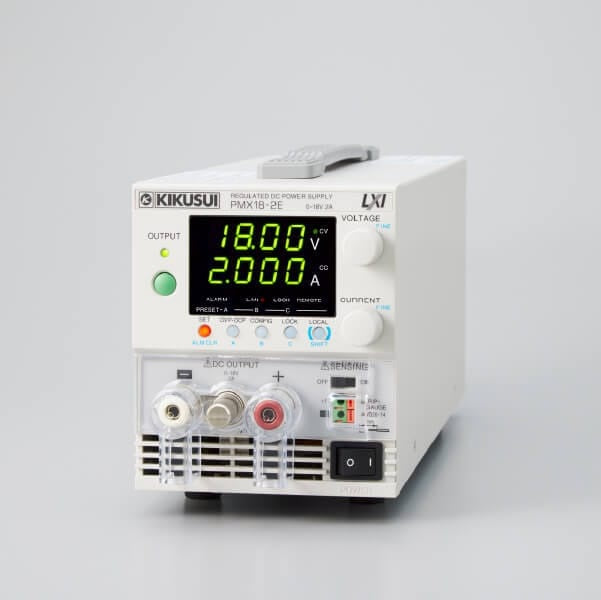

*The image is for reference only. See product specification for details.

Model No

Kikusui

Condition

New

Manufacturer

Kikusui

Current

3 A

Voltage

60 V

Power

70W
