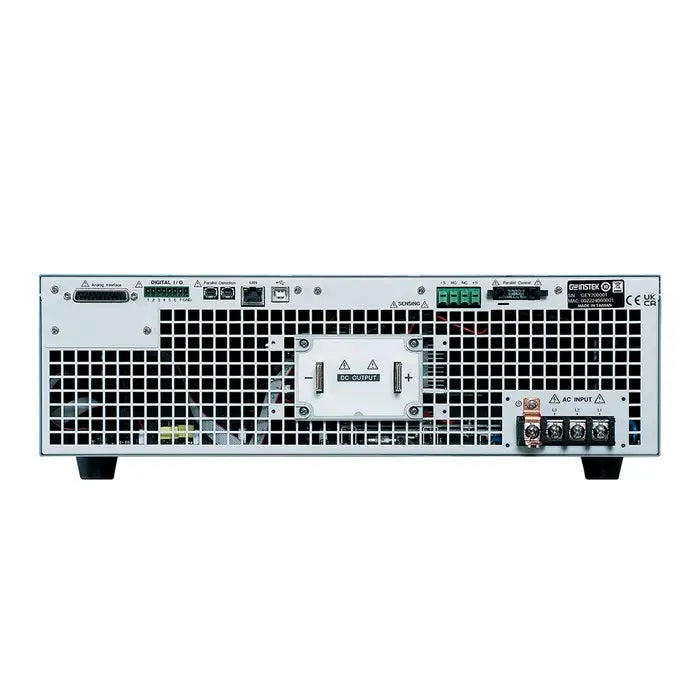

PHU 750-40 Instek DC Power Supply New

PHU 750-40 Instek DC Power Supply New

$8,690
$8,690 $0
Shipping calculated at checkout.
Request a Quote

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

The GW Instek PHU 750-40 is a single channel programmable DC power supply featuring an output voltage of 750 V, 40 A current output and a 15 KW power output. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 5 kW output and keep the compact size at just 3U height.

  • C.C/ C.V priority mode
  • Adjustable voltage/current rise and fall time
  • AWS (Advanced Web Control)
  • Voltage output: 750 V
  • Power output: 15 kW
  • Current output: 40 A
  • Max. input voltage: 200 VAC
  • C.C/ C.V priority mode
  • Adjustable voltage/current rise and fall time
  • AWS (Advanced Web Control)
  • APC (Adaptive Parallel Connection)
  • Parallel connection (maximum 10 units)
  • High efficiency and high-power density
  • Bleeder Control function
  • Internal Resistance function
  • Panel lock function
  • Three sets of Preset Function
  • Protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
  • Standard: USB, LAN, Isolated Analog control
  • Option: RS-232 and 485 or GPIB or CAN Bus or Device Net or Any Bus (Not Included)
  • 3U height and 19 in. Rack Mount Size
  • 3 Year Standard Warranty
View full details
More Details
Specifications
Datasheets
Manuals

The PHU 750-40's wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc.

The AWS (Advanced Web Server) function allows the user to operate devices directly through a web browser, without needing to install any complicated software or drivers. This functionality allows users to complete tasks more efficiently, saving time and increasing productivity.

The unique APC (Adaptive Parallel Connection) feature of the PHU series offers adaptability in parallel connection, allowing users to make the best choice according to their needs. Up to 10 PHU units can be connected to reach 150 kW without the need for additional power distribution for control.

For industry interface, the PHU 750-40 provides a variety of embedded industrial interface options to meet user needs, eliminating the need for users to prepare additional interfaces. The available ports including EtherCAT, CANopen, Modbus, Profinet and DeviceNet, etc. Except the standard built-in programmable sequence function, PHU also offers a variety of optional functions including Datalogger, MPPT (Maximum Power Point Tracking), Solar Array Simulator, AH/WH Meter and Battery Simulation to meet customer's requirements.

Model No

PHU

Condition

New

Manufacturer

Instek

Current

40 A

Voltage

750 V

Power

15 kW
