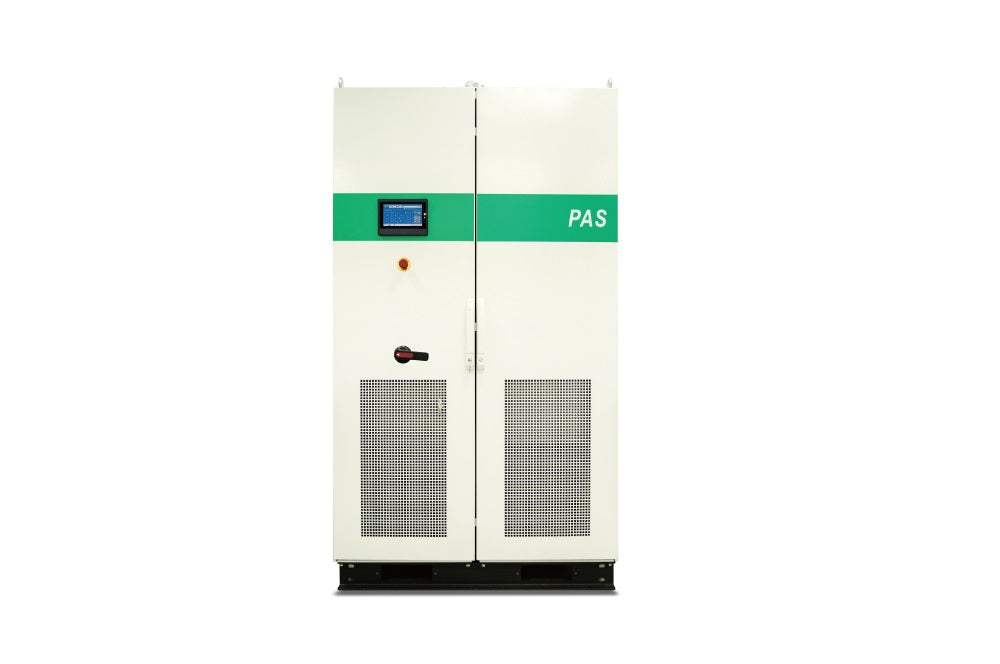

PAS-F-33150 Preen AC Source Used

PAS-F-33150 Preen AC Source Used

$109,995
$109,995
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Key Features at a Glance

  • Output power 30 kVA to 1000 kVA, three-phase 0–300 V (L-N) standard / 0–350 V optional
  • Frequency 45–65 Hz standard; 40–70 Hz optional with ± 0.02 % accuracy
  • Built-in HVRT and LVRT functions per IEEE 1547.1-2020
  • Four-quadrant regenerative operation — sinks DUT energy back to the grid at ≥ 92 % efficiency
  • Three-phase independent voltage adjustment for unbalanced and lost-phase simulation
  • Harmonics Waveform Synthesis (optional): up to 25 harmonics, 50/60 Hz fundamental
  • Compatible with IEEE 1547.1, EN 50530, NB/T 32004, CNS 15382, CNS 15599
  • 5 V DC synchronized signal output for ATE timing
Share on
View full details
More Details
Specifications
Datasheets

PAS-F-33150 — Regenerative Grid Simulator (150kVA/300V/45-65Hz, LVRT)

In summary, the Preen PAS-F-33150 is part of the PAS-F Series, a four-quadrant regenerative grid simulator delivering 30 kVA to 1000 kVA with over 90 % energy regeneration efficiency.

The Preen PAS-F Series is a four-quadrant regenerative grid simulator delivering 30 kVA to 1000 kVA with over 90 % energy regeneration efficiency. Engineered specifically for grid-tied device testing — PV inverters, power conditioning systems, V2G chargers — PAS-F integrates LVRT/HVRT functions per IEEE 1547.1-2020 and supports harmonics waveform synthesis for advanced compliance workflows.

What is the PAS-F-33150 used for?

The PAS-F-33150 is used across photovoltaic inverter test, power conditioning system verification, V2G charger validation, energy storage system integration, and anti-islanding compliance laboratories. Specific test methodologies include IEEE 1547.1-2020 LVRT/HVRT, anti-islanding (Q_f = 1.0 ± 0.05), DC injection, frequency and voltage trip tests, and harmonics distortion immunity per IEC 61000-4 series.

Where does the PAS-F-33150 fit in a typical lab workflow?

The PAS-F-33150 integrates into bench, ATE, and high-power production environments through standard RS-232, RS-485, Ethernet, and USB control. Engineers use it to repeatably simulate global mains and DUT operating conditions during design verification, certification pre-compliance, and end-of-line testing — replacing manual variac/MG-set configurations and improving test repeatability and data capture.

From a measurement standpoint, the PAS-F Series is benchmarked against IEEE 1547.1-2020, EN 50530, NB/T 32004, CNS 15382, CNS 15599, IEC 61000-4-34; RoHS Compliant; CE Marked. Within this product line the PAS-F-33150 delivers the variant-specific output described in this model's specification block below — chosen to match the most common DUT power, voltage, and frequency requirements in the target application.

Preen (AC Power Corporation, founded 1989) is one of the world's highest-volume programmable power-source manufacturers, with ISO 9001:2015 certified manufacturing facilities in Taipei, Tianjin, and Suzhou, and a U.S. service center in Irvine, California. Preen products carry CE and RoHS certifications and have been recognized with multiple Taiwan Excellence Awards for the AFV, AFV-P, and ADG-P product lines — placing the brand in the established commercial tier alongside California Instruments, Chroma, and Pacific Power Source.

How does it compare to alternative AC/DC sources?

  • Compared with California Instruments and Pacific Power Source: Preen typically offers 10–20% lower pricing with strong multi-phase capability — ideal for budget-conscious compliance labs and three-phase applications.
  • Compared with Chroma 61800 series: Preen provides comparable programmability and broader high-power three-phase coverage at competitive ASP.
  • For avionics 400 Hz testing, Preen frequency-converter options (AFC) and AFV+ Type-C 300–840 Hz cover MIL-STD-704 / DO-160 workflows.

Accessories Supplied

  • Three-phase input power cabling sized for the rated kVA
  • Operation manual
  • Preen Program PC remote control software
  • Calibration certificate (when applicable)

Specifications

Specifications below are for the PAS-F Series. The PAS-F-33150 variant within this series is configured as: Regenerative Grid Simulator (150kVA/300V/45-65Hz, LVRT).

Specification Value
Phase 3Ø / 4 Wire + G
Output Voltage 0–300 V (L-N) standard; 0–350 V optional
Frequency Range 45–65 Hz standard; 40–70 Hz optional
Voltage Accuracy 0.5 % F.S. + 4 counts
Frequency Accuracy ± 0.02 % F.S.
THD ≤ 2 % (resistive load)
Line / Load Regulation ≤ 1 % / ≤ 1 %
Response Time ≤ 2 ms
Crest Factor ≥ 3
Efficiency ≥ 92 % at max power
Regenerative Function Four-quadrant — sink and source current back to grid
Voltage Ride-Through LVRT + HVRT per IEEE 1547.1-2020
Three-Phase Independent Adjustment Yes
Harmonics Editor 2–25 harmonics (optional)
Remote Interfaces Standard: RS-485, RS-232 · Optional: GPIB, Ethernet, USB
Operating Temperature 0 °C to 45 °C

Unit Options

The PAS-F-33150 accepts the following factory-installed options. Multiple options may be selected.

(select all that apply — multi-select)

  • PAS-F-001 — Soft Start Function
  • PAS-F-002 — GPIB Interface
  • PAS-F-003 — Ethernet Interface
  • PAS-F-004 — USB Interface
  • PAS-F-005 — Output Frequency 40–70 Hz
  • PAS-F-006 — Harmonics Editor
  • PAS-F-007 — Output Voltage 0–350 V (L-N)

Calibration Options

(single selection)

  • No Calibration Required
  • NIST Traceable
  • Z540.1 or ISO 17025 with Data
  • Z540.3 Guardbanding with Data

About this used unit

  • Warranty included.
  • Functional verification included.
  • Standard Calibration Upgrade Options: No Calibration Required, NIST Traceable, Z540.1 or ISO 17025 with Data, Z540.3 Guardbanding with Data.
  • Unnecessary accessories may not be included — contact your Test Architect to confirm what ships with this specific unit.

This webpage was written by a human with an A.I. 'Intern', which may contain errors. Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
