MXO5C-K31 Rohde & Schwarz NEW

MXO5C-K31 Rohde & Schwarz NEW

$3,340
$3,340 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Power analysis option
  • Compatible with MXO5C oscilloscopes
  • Oscilloscope sold separately
  • Extends the MXO 5C firmware with measurement functionality focused on switched mode power supplies (SMPS) and DC/DC converters
  • Up to six sets of power analysis measurements are possible
View full details
More Details
Specifications
Datasheets

The MXO5C-K31 is the power analysis option for MXO5C oscilloscopes. This option extends the MXO 5C firmware with measurement functionality focused on switched-mode power supplies (SMPS) and DC/DC converters. Up to six sets of power analysis measurements are possible.

  • Quality
    • Evaluation of power quality at an AC input; measures real power, apparent power, reactive power, power factor and phase angle of power, frequency, crest factor, RMS of voltage, and current

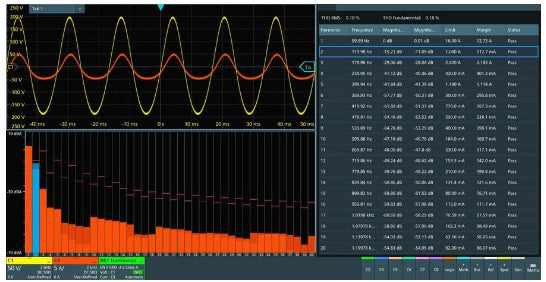

  • Harmonics
    • Measures up to the 334ᵀᴴ harmonic of the incoming line frequency; pre-compliance checking for IEC 61000-3-2 (A, B, C, D), RTCA DO-160, MIL-STD-1399, max. limit checks
  • Deskew
    • Automated compensation of the propagation delay
  • Zero offset
    • Automatic compensation of input offset

*The image is for reference only. See product specification for details.

Model No

MXO5C-K31

Condition

New

Manufacturer

Rohde & Schwarz

Rohde Schwarz MXO5C Fact Sheet
