Digital Oscilloscope (4 Channel / 1.5 GHz)

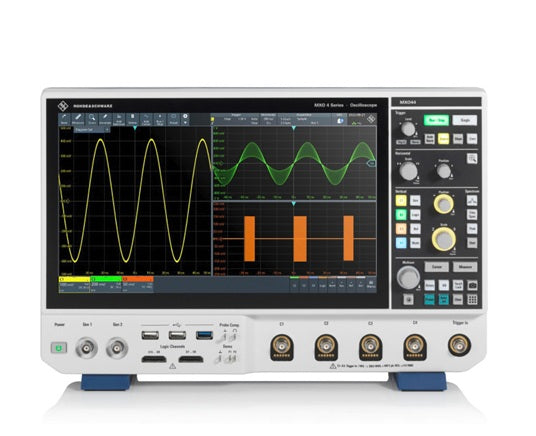

The MXO 4 series is the first of a new generation of oscilloscopes that excels in both performance and value. The instruments deliver a once-in-a-decade engineering breakthrough for accelerated insight. A touch above other oscilloscopes in its segment, the MXO 4 series oscilloscope sports an impressive 13.3" Full HD capacitive touchscreen and an intuitive user interface with a learning curve of less than 15 minutes.
The MXO 4 series oscilloscopes utilize leading-edge technologies to achieve fast and accurate results. Custom technology and innovative features in its oscilloscopes quickly boost your understanding of circuit behaviors.
12-bit ADC: all the time
All MXO 4 series oscilloscopes incorporate a 12-bit A/D converter. 12-bit vertical resolution delivers 4096 quantization levels for precise vertical sampling. This is a 16x improvement over 8-bit ADCs. The ADC stays in 12-bit mode all the time, even at the fastest sample rates. Offering a user tradeoff between bandwidth and bits of resolution, HD mode, implemented in hardware for fast speed, achieves up to 18-bit vertical resolution. This allows you to see sharper waveforms with more signal details that would otherwise be masked by noise.
Deep memory as an insurance policy
After bandwidth and sample rate, memory depth is the most important attribute that determines the product’s ability to handle a large range of troubleshooting tasks. With 400 M points acquisition memory standard on all four channels simultaneously, the MXO 4 series oscilloscope offers up to 100 times the standard memory compared to the primary competitor.
Spectrum Analysis
The MXO 4 series oscilloscope is engineered with spectrum analysis in mind to bring forward fast and powerful analysis capabilities. It boasts an industry-leading spectrum acquisition rate of 45 000 FFT/s. This allows the capture of spurious spectrum events, especially when doing EMI debugging. The pristine RF characteristics of the instrument balance great spectrum performance with the synchronized time domain view.
You can configure the spectrum analysis function of the R&S®MXO 4 by simply entering typical parameters: center frequency, span, and resolution bandwidth (RBW). The spectrum settings are independent of the time domain settings, but the time and frequency domains are time-correlated.
Quickly and reliably detect sporadic signal faults.
The statistical confidence in results is higher the more waveforms are acquired. A high update rate increases the likelihood of detecting and displaying signal faults and including them in analysis. The high update rate enables the MXO 4 to generate trustworthy statistical results based on a high number of waveforms in a short time. This is crucial for quickly understanding electronic circuits.
Vertical sensitivity to 500 μV/div with ±5 V offset range
The MXO 4 series oscilloscope offers an outstanding sensitivity down to 500 μV/div without any unexpected reduction in bandwidth. With an offset of ±5 V at higher sensitivity vertical scale, you can easily place the signal at the center of the screen. Extended offset enables the use of more sensitive vertical resolution, meaning higher ADC bits and lower noise.
Grows with your needs - fully software-based upgrades
The MXO 4 series flexibly adapts to relevant project updates. You can simply install the necessary software licenses, e.g., triggering and decoding of serial protocols or the frequency response analysis option. The waveform generator and MSO capabilities are built-in and just need to be activated. The bandwidth can be upgraded up to 1.5 GHz via keycode. All this makes retrofitting very easy.
Regular firmware updates consistently add new functions to the MXO 4 series oscilloscopes. Download the latest firmware version at www.rohde-schwarz.com and use a USB storage device or LAN connection for installation. Your MXO 4 series oscilloscope is always up to date.
Model No
MXO44-BNDL
Condition
New
Manufacturer
Rohde & Schwarz
Channels
4
Frequency
200 MHz
Sampling rate
5 GS/s
