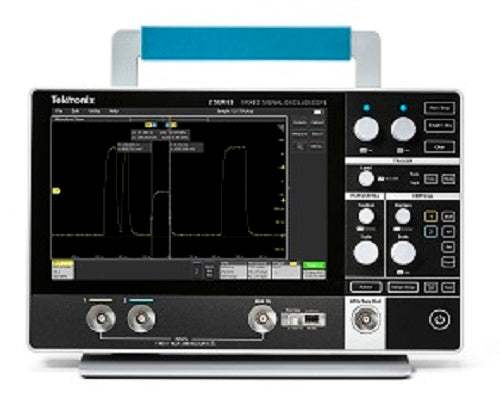

MSO22 2-BW-70 Tektronix Mixed Signal Oscilloscope

MSO22 2-BW-70 Tektronix Mixed Signal Oscilloscope

Shipping calculated at checkout.
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Bandwidth: 70 MHz
  • Number of Channels: 2
  • Sample Rate: 2.5 GS/s Half channels; 1.25 GS/s All channels
  • Record length: 10 Mpoints per channel
  • Vertical resolution: 8 bits ADC; Up to 16 bits in high-resolution mode
  • Standard trigger types: Edge, pulse width, runt, timeout, logic, setup and hold, rise/ fall time, and parallel bus
  • Remote control: Remotely view and control oscilloscope over network connection through remote Virtual Network Computing (VNC)
  • VESA mount: 100 mm x 100 mm VESA interface
  • Security: Kensington lock
  • Standard probes: One TPP0200 200 MHz, 10x voltage probe per channel
View full details
More Details
Specifications
Datasheets

The Tektronix MSO22 2-BW-70 Mixed Signal Oscilloscope features 2 analog channels, 70 MHz bandwidth, 2.5 GS/s sample rate, 10Mpts record length, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, advanced triggers, protocol decode, DVM, and frequency counter. The MSO22 packs all of these features into a compact form factor, approximately 1.5 in. thick, making it ideal for electronic debug and test.

Model No

MSO22

Tektronix 2 Series MSO Brochure
Tektronix 2 Series MSO Datasheet
