Features:

  • True RMS for accurate readings of non-sinusoidal waveforms
  • Built-in non-contact Voltage detector with LED alert
  • 2.0" (52mm) jaw size for conductors up to 500MCM
  • Dual 40,000/4000 count, backlit LCD display
  • Includes Multimeter and Type K Temperature functions
  • Inrush function captures transients during motor startups
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • Data Hold, Peak Hold, MIN/MAX, and Auto Power Off
  • Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case
View full details
More Details
Specifications
Datasheets

Accessories:

  • 480172 - AC Line Splitter
  • TL803 - General Purpose Test Leads
  • TL805 - Double Injected Test Leads
  • TL809 - Electronic Test Lead Kit
  • TL810 - Electrical Test Lead Kit
  • TL808-KIT - Professional Test Lead Kit
  • TL900 - SafeSense™ CAT IV Fused Test Leads
  • TL831 - Master Electrical Test Lead Kit
  • TL833 - Industrial Test Lead Set
  • TL841 - Test Lead Kit
  • TL806 - Double Insulated Alligator Clips
  • TL807 - Insulated Alligator Clips
  • TL807C - Insulated Alligator Clips
  • TP873 - Bead Wire Type K Temperature Probe (-22 to 572°F)

Specifications:

  • True RMS: Yes
  • Display counts: 40,000/4000 count LCD w/bargraph (backlit)
  • Jaw size/Cable size: 2.0" (52mm); 500MCM
  • AC Current: 1500A
  • DC Current: 1500A
  • Max resolution: 0.01A
  • Basic ACA Accuracy (% rdg): ±2.8%
  • AC Voltage (Max Res.): 750V (0.01mV)
  • DC Voltage (Max Res.): 1000V (0.01mV)
  • Resistance (Max Res.): 40MΩ (0.01Ω)
  • Capacitance (Max Res.): 40mF (0.01nF)
  • Frequency (Max Res.): 40MHz (0.001Hz)
  • Temperature: -148 to 1832°F (-100 to 1000°C)
  • Diode/Continuity: Yes
  • Dimensions/ Weight: 11.6x4.1x1.9" (294x105x47mm)/ 18.9oz (536g)

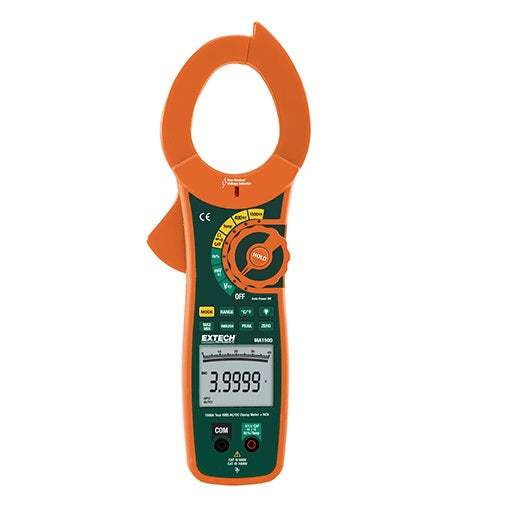

The MA1500-NIST is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include: Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.

Model No

MA1500-NIST

Condition

New

Manufacturer

Extech

Amps

1.5 kA

Volts

1 kV
