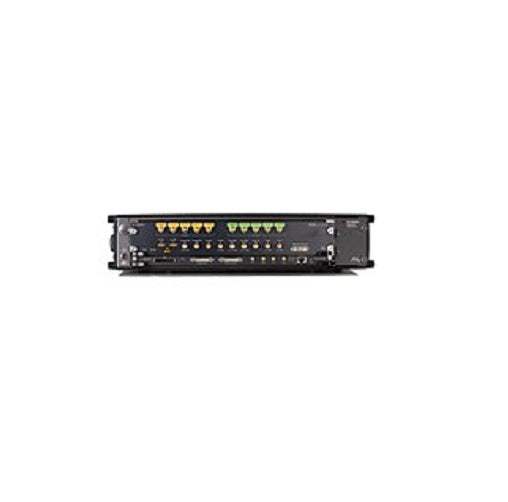

M8190A Agilent Arbitrary Waveform Generator Used

M8190A Agilent Arbitrary Waveform Generator Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Precision AWG with two DAC settings
  • 14-bit resolution up to 8 GSa/s
  • 12-bit resolution up to 12 GSa/s
  • High-speed arbitrary waveform generators
  • Variable sample rate from 125 MSa/s to 8 / 12 GSa/s
  • Spurious-free-dynamic range (SFDR) up to 90 dBc typical
  • Up to 2 GSa arbitrary waveform memory per channel with advanced sequencing
  • Analog bandwidth up to 5GHz
  • Unique Performance – Unique Value
  • Up to 90 dBc SFDR - Tones clearly stand out of noise (Even with thousands of tones)
  • 2 GSa memory per channel - Realistic signal scenarios with long play time
  • 5 GHz analog bandwidth - Mimic analog imperfections with custom ISI
  • Key applications
  • Radar, Satellite, Electronic Warfare, Multilevel Signals
  • ADC testing (Analog Digital Converter testing), Jitter Margin Testing
  • Digital Video, Noise Power Ratio Measurement, Wireless HD, HDMI, MHL
  • IEEE 802.11ad, CaTV, OFDM, Software Defined Radio
Share on
View full details
More Details
Specifications
Datasheets

Specifications:

  • 5 GHz

From low-observable systems to high-density comms, testing is more realistic with precision arbitrary waveform generation. Now you can take reality to the extreme: A Keysight AWG is the source of greater fidelity, delivering high resolution and wide bandwidth – simultaneously. This unique combination lets you create signal scenarios that push your design to the limit and bring new insight to your analysis. Get bits and bandwidth – and enhance your reality.

Model No

M8190A

Condition

Used

Manufacturer

Agilent

Frequency

5 GHz

Keysight_M8190A
