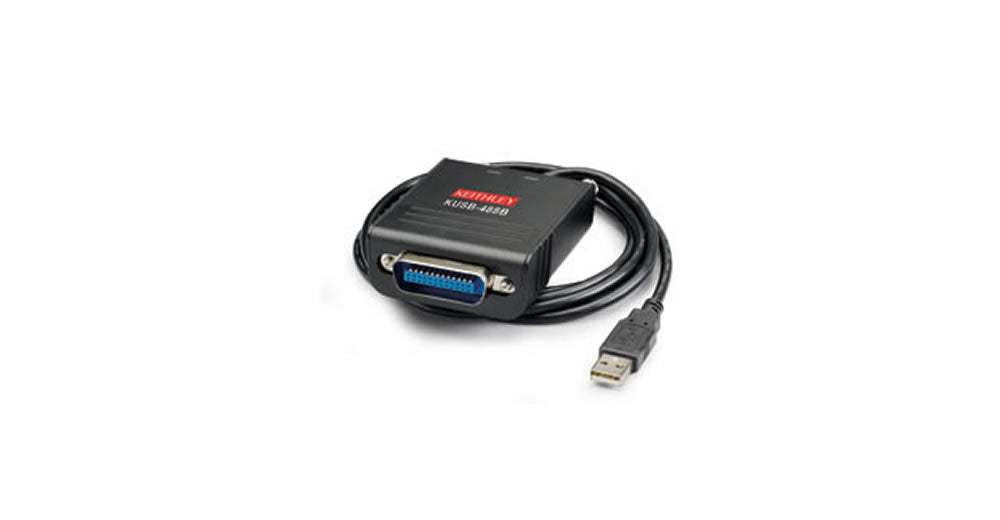

KUSB-488B Keithley GPIB Adapter Used

KUSB-488B Keithley GPIB Adapter Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Bus/Form Factor: USB
  • Power (Current @ 5 VDC): 500 mA
  • Transfer Speed: 1.5 Mbyte/s
  • IEEE-488.2 compatible for fast data transfer
  • Windows® XP/2000/Vista drivers included
  • LabVIEW® and LabWindows/CVI support
  • Compatible with any standard GPIB instrument
  • Ideal for use with automated test equipment in laboratory and industrial applications
  • Dimensions: 3.2 × 2.6 × 1.1 in (81.7 × 66.1 × 27.8 mm)
  • EMC: European Directive 2004/108/EEC
  • Operating: 0° to 55°C, 10% to 90% RH non-condensing
  • Storage: –20° to 80°C, 5% to 95% RH non-condensing
Share on
View full details
More Details
Specifications
Datasheets

Keithley’s GPIB interface solutions make it easy to add standard IEEE-488.2 bus control to any PC system. These high speed tools can control as many as 14 GPIB instruments or other devices over a distance of up to 20 meters. They are ideal for use with automated test equipment in laboratory and industrial applications. The Keithley Model KUSB-488B USB-to-GPIB interface turns any computer with a USB port into a fully functional GPIB controller. The KUSB-488B’s small form factor makes it perfect for use with laptop computers in portable applications or for other applications in which the computer has no available PCI plug-in board slots. The product is USB 2.0 compliant and has an IEEE data transfer rate upwards of 1.5 MB/s through the USB port. No external power is required. KUSB-488B has a built-in 2-meter USB cable.

Model No

KUSB-488B

Condition

Used

Manufacturer

Keithley

Keithley_KPCI-488LPA_KUSB-488B
