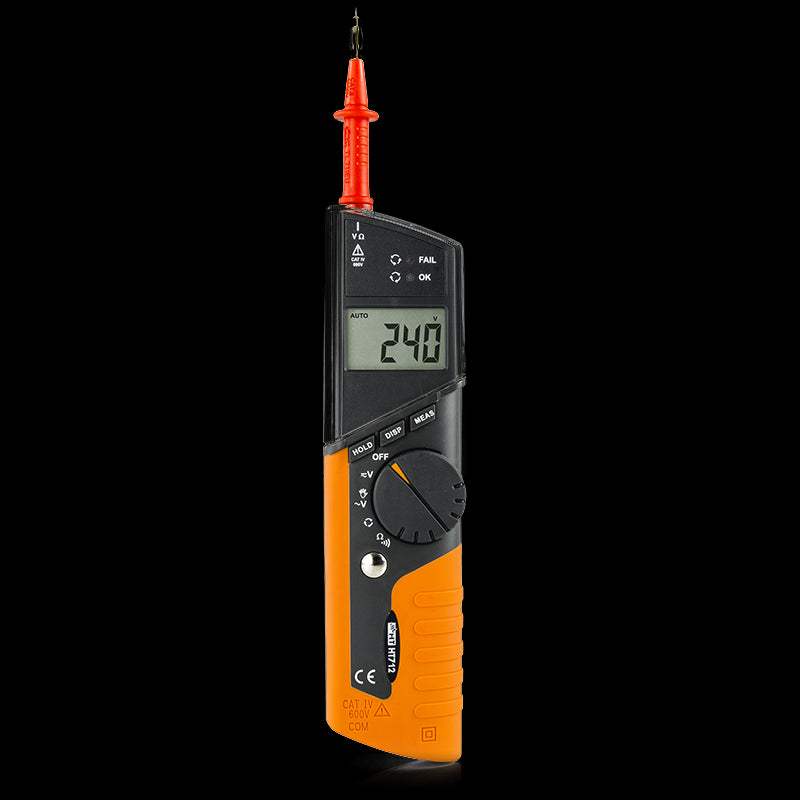

The HT712 from HT Italia is a pen-style multimeter built for phase sequence and phase conformity measurement alongside conventional electrical readings. In a single compact handheld body it combines DC and AC voltage measurement, frequency measurement, resistance and continuity testing, and dedicated phase-rotation functions, making it a self-contained instrument for working on AC line and three-phase systems.
A pen multimeter consolidates several common electrical measurements into a probe-shaped instrument that can be operated one-handed at a terminal or connection point. The HT712 extends that format with phase sequence and phase conformity testing, both performed as 1-wire measurements, so an electrician or technician can confirm rotation and phase relationships in addition to taking voltage, frequency, resistance, and continuity readings from the same tool.
ValueTronics stocks and holds its own inventory in a 20,000 sq ft secure warehouse at 1675 Cambridge Drive in Elgin, Illinois.
| Specification | Value |
|---|---|
| DC Voltage | |
| Range | 0.1 ÷ 599.9V |
| Resolution | 0.1V |
| Accuracy | ±(1.0%rdg+2dgt) |
| Input impedance | 1MΩ |
| Overload protection | 600VACrms |
| AC Voltage | |
| Range | 2 ÷ 599.9V |
| Resolution | 0.1V |
| Accuracy | ±(1.0%rdg+2dgt) |
| Input impedance | 1MΩ |
| Overload protection | 600VACrms |
| Max Crest factor | =1.5 |
| AC Voltage (1-wire measure) | |
| Range | 50 ÷ 600V (*) |
| Resolution | 10V |
| Accuracy | ±(15%rdg+10V) |
| Input impedance | 1MΩ |
| Overload protection | 600VACrms |
| Max Crest factor | =1.5 |
| Frequency | |
| Range | 40.0 ÷ 69.9Hz |
| Resolution | 0.1Hz |
| Accuracy | ±(0.5%rdg+dgt) |
| Input voltage | 2 ÷ 600V |
| Overload protection | 660VACrms |
| Resistance and Continuity Test | |
| Range | 1 ÷ 1500Ω |
| Resolution | 1Ω |
| Accuracy | ±(1.0%rdg+2dgt) |
| Buzzer | R<40Ω |
| Overload protection | 600VACrms (60 sec) |
| Phase Sequence and Phase Conformity (1-wire measure) | |
| Range | 100 ÷ 600V (*) |
| Input impedance | 1MΩ |
| Overload protection | 600VACrms |
| Display | |
| Type | LCD Display, 3¾ dgt, 1999 counts, decimal point, unit symbol |
| Polarity | Automatic polarity indication |
| Overload | "OL" overload indication |
| Features | |
| Functions | HOLD, AutoPowerOFF |
| Low battery indication | Battery symbol shown at display |
| General | |
| Working temperature | 5°C to 40°C, <80%UR |
| Storage temperature | -10°C to 60°C, <70%UR |
| Max altitude | 2000m |
| Pollution degree | 2 |
| Insulation | class 2 (double insulation) |
| Power supply | 2 x 1.5V alkaline battery type AAA, UM4, R03 |
| Battery life | about 200 hours |
| Dimensions | 200(L) x 51(La) x 30(H) mm |
| Weight (included batteries) | 240g |
| Applied Standards | |
| LVD | EN 61010-1, CAT IV 600V (between inputs and between Phase-Earth) |
| EMC | EN60326 (1997) + A1 (1997) |
Important: 1-wire AC voltage, phase sequence, and phase conformity measurements are specified under normal use conditions (instrument held firmly, standard shoes, standard floors).
Important: Applied safety standard: LVD EN 61010-1, CAT IV 600V (between inputs and between Phase-Earth).
This is a brand-new, factory-sealed unit, supplied exactly as it arrives from the manufacturer and backed by the full manufacturer warranty. For the exact configuration, available options, included accessories, or current lead time for your application, our Test Architects can confirm the details before you order.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
