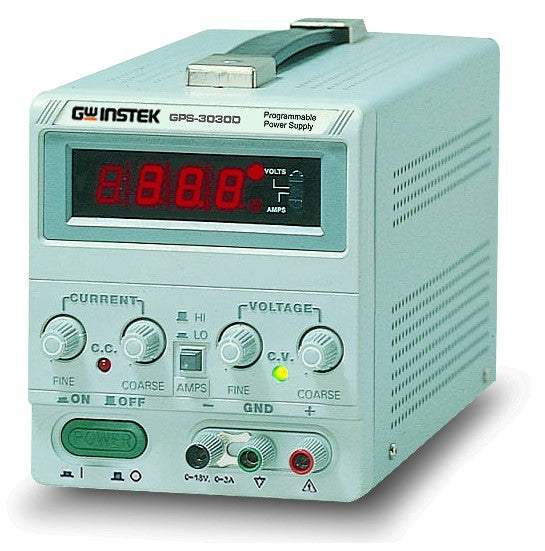

GPS-3030DD Instek DC Power Supply

GPS-3030DD Instek DC Power Supply

$125
$125
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 0-3A DIGITAL
  • Light and Compact Design
  • 0.01% High Regulation
  • Constant Voltage and Constant Current Operation
  • Remote Control for External Programmability
  • Internal Select for Continuous or Dynamic Load
  • Low Ripple and Noise
  • Overload and Reverse Polarity Protection
  • Series or Parallel Operation
  • Model GPS-3030DD has Separate Displays for Simultaneous Voltage and Current Readings
  • The GPS-Series includes both analog and digital display meters with varying power outputs
  • Features overload and reverse polarity protection as well as high regulation and low ripple/noise that are maintained at 0.01% and < 1mVrms, respectively
  • Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device
View full details
More Details
Specifications
Datasheets

The regulated DC power supply have been designed to provide the most often required in the laboratory, schools and production lines. The output voltage is continuously adjustable between 0 to rating voltage in one range by means of coarse and fine potentiometer, the load current may have any value from 0 to rating current and adjusted by means of a coarse and fine potentiometer. Both outputs can accurately read on voltmeter and ammeter.

Both stability and ripple are extremely good to meet the requirements of modern circuit design. The unit can be used as either constant voltage or current source.

  • For applications when output greater than V or A is need, the unit can be connected up in a series or parallel.
  • For applications in audio production lines, the continuous or dynamic load internal selectable.

Model No

GPS-3030DD

Instek_GPS-3030DD
