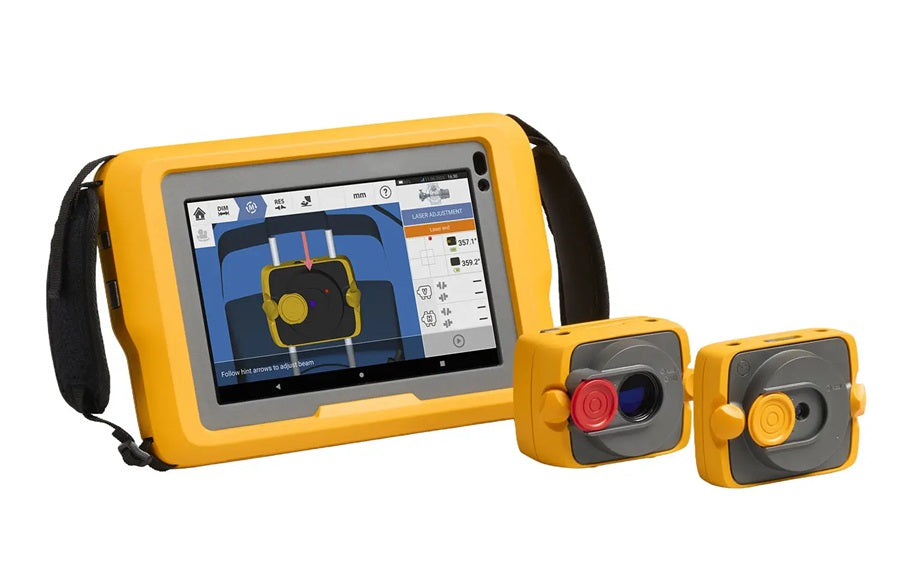

FLUKE-832 Fluke Laser Shaft Alignment Tool New

Advanced capabilities enable teams to achieve challenging alignment demands

• Short-Flex Coupling and Tolerances
• Live Move H and V
• Soft Foot
• 8-Point Active Clock
• Space Coupling
• Vertical Alignment
• Quality Factor and SD
• Thermal Growth and Coupling Targets
• Static Feet and Multiple Feet
• Single-laser double detector technology simplifies setup while delivering precise results, reducing alignment time and minimizing risk of errors
• Sensor includes 2x HD position-sensitive detectors (PSD) and MEMS inclinometers to measure and document initial alignment conditions
• Simultaneous live move technology allows technicians to see alignment corrections in real-time for faster adjustments and fewer rechecks
• Active Situational Intelligence (ASI) adapts to user's experience/skill level and alignment challenge at hand for variety of industrial assets
• 8-point active clock mode takes readings at 8x positions to reduce possible errors caused by shaft play or backlash
• Quality factor mode performs statistical analysis on measurement data using standard deviation to identify erroneous readings
• Dual optical planes and freeze-frame measurement ensure accurate results even with extreme misalignments, without need for manual pre-alignments
• Guided, user-friendly workflow features step-by-step instructions that make advanced shaft alignment easy for technicians of any skill level
• Built-in ROI calculator provides instant visibility into financial benefits of precision alignment
• Create tailored reports with ease via pre-installed full/short templates or custom layouts
• Seamless cloud-based data sharing with ARC 4.0 PC software for added connectivity between field technicians and reliability teams
• Wi-Fi, Bluetooth, and USB-C connectivity plus RFID capability for host of communication interfaces
• Bright, durable display with long battery life and IP65 protection ensures reliable performance in harsh environments and long maintenance shifts
• 2-year warranty protects instrument against manufacturer defects

The Fluke 832 Laser Shaft Alignment Tool is designed to solve problems in the easiest way possible. Featuring the unique single-laser, double detector technology laser and sensor heads, it enables powerful, fast, and efficient alignment on rotatable shafts and machines.

The Fluke 832 is engineered for standard machinery and everyday alignment tasks. It seamlessly integrates hardware, software, and wireless connectivity to deliver accurate shaft alignment data directly to and from the cloud. With a user-friendly, guided interface, virtually anyone can operate the system by following three simple steps of entering dimensions, taking measurements, and viewing results.

Rugged Tablet for Industrial Performance

The Fluke 832 pairs an octa‑core processor with a bright, durable 8 in. Gorilla Glass display, delivering smooth performance and clear visibility even outdoors. Its 6100 mAh battery provides up to 11 hours of use, supporting long maintenance shifts without frequent recharging.

Built for harsh environments, the tablet meets IP65 standards, survives 1.2m drops, and operates reliably in extreme temperatures. With Wi‑Fi 6, Bluetooth 5.1, RFID capability, USB‑C connectivity, and high‑quality front and rear cameras, it streamlines data transfer, documentation, and field collaboration.

Customizable Reports

Create tailored reports with ease using the Fluke 832’s flexible reporting options. Choose from pre-installed full or short templates, or use custom layouts. Select exactly what data and graphics to include, rearrange major sections to better suit workflows, and save personalized templates for future use, ensuring every report meets the team’s needs with precision and efficiency.

Built-In ROI Calculator

The integrated ROI calculator in the Fluke 832 provides instant visibility into the financial benefits of precision alignment. By calculating savings from reduced downtime, extended equipment lifespan, and improved energy efficiency, users can quantify the value of each alignment task. This feature supports informed decision-making, helps justify maintenance investments, and enhances operational efficiency within a single, user-friendly interface.

The Fluke 832 is built for connected reliability, enabling seamless cloud-based data sharing with ARC 4.0 PC software. This connectivity bridges the gap between field technicians and reliability teams, enhancing collaboration and performance tracking. By integrating alignment data into broader reliability workflows, the Fluke 832 helps teams work smarter and faster, unlocking full capacity to solve alignment challenges with precision and insight.

Single Laser Technology

The inherent Fluke single-laser technology provides precise measurement results and easy mounting and measuring. The Fluke 832's sensor includes two HD position sensitive detectors (PSD) and MEMS inclinometers. These combined with the detector extension capability make it possible to measure and document the initial alignment condition.

Simultaneous Live Move

Simultaneous Live Move, another strong problem-solving feature, allows the user to evaluate the physical alignment corrections in real-time in both vertical and horizontal directions. Users can monitor the alignment process in real-time on the handheld tablet display, instantly see the physical alignment results, and quickly re-measure to confirm the alignment results. An assortment of colored tolerance smiley faces show the condition of the alignment quality at a glance.

No matter what measuring mode used or in what angle or direction the laser and sensor heads come to stop, leave them mounted as the machine is shimmed and adjusted as proposed by the tablet.

Active Situational Intelligence (ASI)

The Fluke 832 offers different measuring modes to align coupled and uncoupled shafts on horizontally and vertically mounted machines. It adapts to the user’s experience and skill level as well as to the alignment challenge for a variety of industrial assets.

8-Point Active Clock

This measurement method takes readings at eight positions to reduce possible errors caused by shaft play or backlash, leading to more precise alignment elliptical calculations.

Quality Factor and SD

This feature performs statistical analysis on measurement data using standard deviation to identify erroneous readings caused by external factors like vibration or shaft movement. This helps technicians detect issues affecting the measurement quality and improves confidence in the alignment results.
