Features:
True RMS clamp meter for current and voltage measurements
Built-in IR thermometer for non-contact temperature measurements
Multimeter functions include resistance, capacitance, frequency, Type K temperature, diode, and continuity
*** Does not measure DC current. See model EX840A for that functionality ***
43 mm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM
Low Pass Filter to ensure accurate readings in electrically noisy environments
Low Impedance Mode (LoZ) to prevent false readings caused by ghost voltages
6000 count backlit LCD display
Auto power off
Extech EX820A
True RMS clamp meter for current and voltage measurements
Built-in IR thermometer for non-contact temperature measurements
Multimeter functions include resistance, capacitance, frequency, Type K temperature, diode, and continuity
43 mm (1.7 in) jaw opening for conductors up to 750 MCM or two 500 MCM
Low Pass Filter to ensure accurate readings in electrically noisy environments

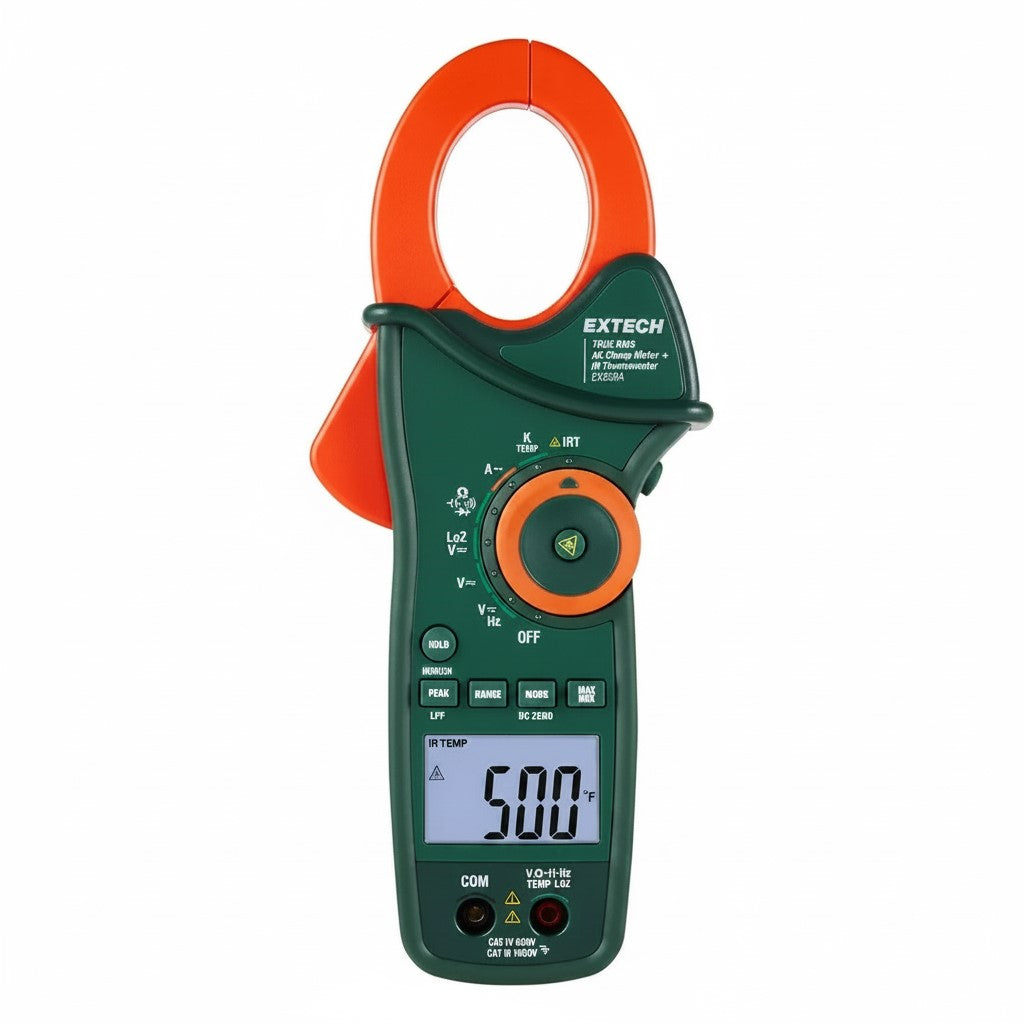

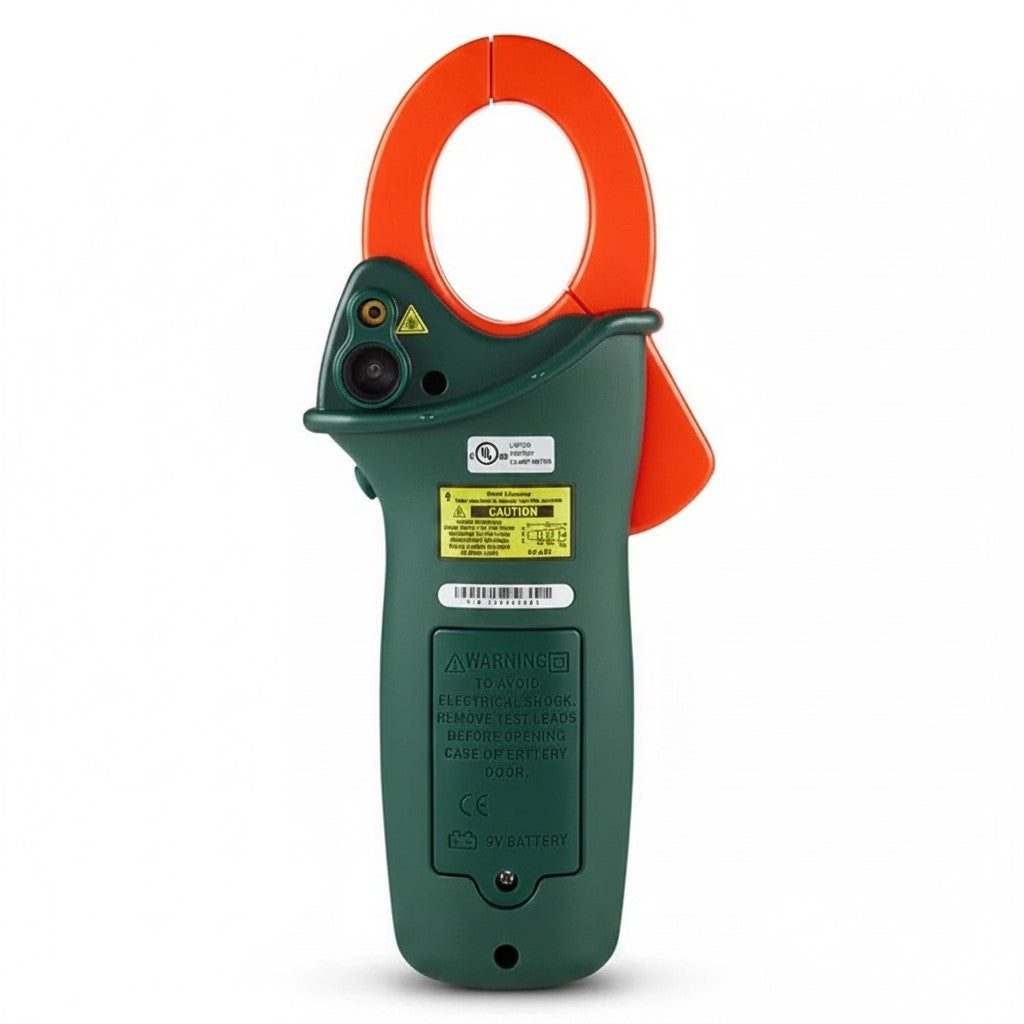

1000A AC Clamp Meter with IR, Low Pass Filter (LPF) and Low Impedance Mode (LoZ)
The EX820A clamp meter features a unique, built-in, non-contact infrared thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices. A large 6000 count LCD display with bright back lighting allows you to easily see readings in dim light. Its ergonomically designed double-molded housing offers a better grip for one-handed operation and the 43 mm (1.7 in) diameter jaw opening is large enough for conductors up to 750 MCM or two 500 MCM. With 1000 A True RMS measurements and a CAT IV-600 V safety rating, the EX820A is ideal for electricians, electrical contractors, and plant maintenance professionals.
Meter Components
1. Current clamp jaws
2. Clamp opening trigger
3. Backlight button
4. Function switch
5. Laser pointer button
6. Control buttons (Section 3.1)
7. Backlit LCD (Section 3.4)
8. Negative test lead probe jack
9. Positive test lead probe jack
