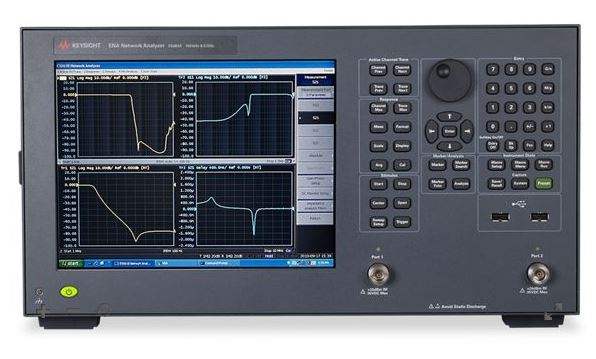

E5063A Keysight Network Analyzer New

E5063A Keysight Network Analyzer New

$13,592
$13,592 $13,326
Shipping calculated at checkout.
Required
Optional:
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Measure a wide range of components with a versatile 2-port, 50-ohm S-parameter test set
  • Enhance your measurements with Option 010 for time domain analysis capability
  • Simplify PCB design and test with a dedicated graphical user interface with Option 011
  • Boost efficiency and productivity with a consistent measurement framework
  • Upgrade options at any time
View full details
More Details
Specifications
Options
Datasheets

The Keysight E5063A ENA is an affordable benchtop vector network analyzer for testing simple passive components such as antennas, filters, cables, or connectors up to 18 GHz. It leverages the consistent measurement framework of the industry standard ENA Series to boost efficiency and productivity. It is ready to evolve as technologies change.

Drive Down the Cost of Test for Passive RF Components

The best solution for PCB design and test

Compared to traditional solutions based on sampling oscilloscopes, the E5063A PCB Analyzer provides three breakthroughs for PCB design and test:

  • More accuracy, repeatability, and reproducibility
  • More languages supported
  • More ESD robustness

Software

Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5063A with software applications such as wireless power transfer analysis, frequency offset mode, time domain analysis, and more.

E5063A Software

Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5063A with software applications such as wireless power transfer analysis, time domain analysis, and more.

E5063A-010 Time Domain Analysis

View transmission and reflection responses in the time domain. Tune filters, gate out fixtures and cables, and characterize tranmission lines.

E5063A-011 Time Domain Analysis/Test Wizard

Adds a dedicated interface for PCB manufacturing test for efficient impedance and return loss measurements.

E5063A-006 Wireless Power Transfer Analysis

Measure Wireless Power Transfer (WPT) efficiency between coils or resonators in real-time with arbitrary load impedance setting.

Model No

E5063A

Condition

New

Manufacturer

Keysight

Frequency

500 MHz

6

Wireless power transfer analysis

10

Time domain analysis

11

Time domain analysis/Test Wizard

19

Standard: Data Storage

1CM

Rack mount kit

1CN

Front handle kit

1CP

Rack mount and front handle kit

205 - 500 MHz

Frequency 100 kHz to 500 MHz

215 - 1.5 GHz

Frequency 100 kHz to 1.5 GHz

235 - 3 GHz

Frequency 100 kHz to 3 GHz

245 - 4.5 GHz

Frequency 100 kHz to 4.5 GHz

265 - 6.5 GHz

Frequency 100 kHz to 6.5 GHz

285 - 8.5 GHz

Frequency 100 kHz to 8.5 GHz

2D5 - 14 GHz

Frequency 100 kHz to 14 GHz

2H5 - 18 GHz

Frequency 100 kHz to 18 GHz

721

Add GPIB

722

Standard: Not required GPIB

731

Add Handler IO

732

Standard: Not required Handler IO

810

Add keyboard

820

Add mouse

Keysight Technologies E5063A Data Sheet
