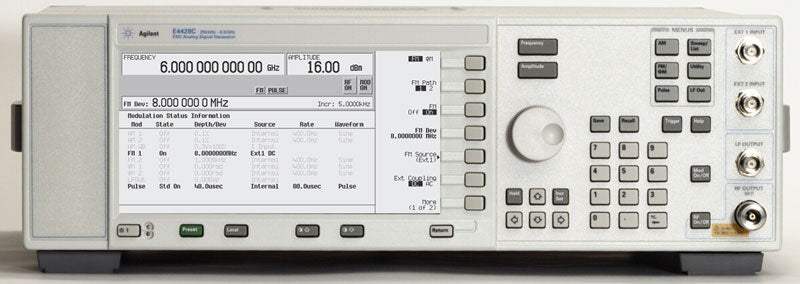

• E4428C Agilent RF Generator
1 1
Used
Compare
lab tested

E4428C Agilent RF Generator Used

E4428C Agilent RF Generator Used

Options
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • 250 kHz to 3 or 6 GHz (.01 Hz resolution)
  • -136 to 17 dBm @ 1 GHz and 10 dBm @ 6 GHz output power
  • +/-0.5 to +/-0.9 dB level accuracy (> -110 dBm)
  • -134 dBc/Hz SSB phase noise @ 20 kHz offset, 1 GHz carrier (typ)
  • Enhanced phase noise performance (Option UNJ) ships standard
  • High-stability timebase: oven-controlled crystal oscillator (OXCO)
  • AM, FM, ØM, and pulse (may be simultaneously enabled)
  • Typical 6 ns rise/fall times and 20 ns pulse width
  • Dual internal function generators: sine, square, triangular, ramp, and noise
  • 10BaseT LAN and GPIB
  • SCPI and IVI-COM drivers
  • Backwards compatible with all ESG signal generators
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

The Agilent E4428C ESG analog signal generator delivers outstanding spectral purity, level accuracy, output power, and analog modulation performance up to 3 or 6 GHz for all general-purpose test needs. This makes the Agilent E4428C ESG a superb choice for general-purpose tests requiring CW, AM, ØM, and FM receiver and component test signals in the cellular, ISM, and UNII frequency bands.

Model No

E4428C

Condition

Used

Manufacturer

Agilent

Frequency

6 GHz

["503

250 kHz to 3 GHz frequency range [electronic attenuator standard]

506

250 kHz to 6 GHz frequency range [mechanical attenuator only]

UNB

High output power with mechanical attenuator

]

Agilent E4428C ESG
Agilent E4428C E4438C Installation Guide
Agilent E4428C E4438C Service Guide
Agilent E4428C E4438C Users Guide
