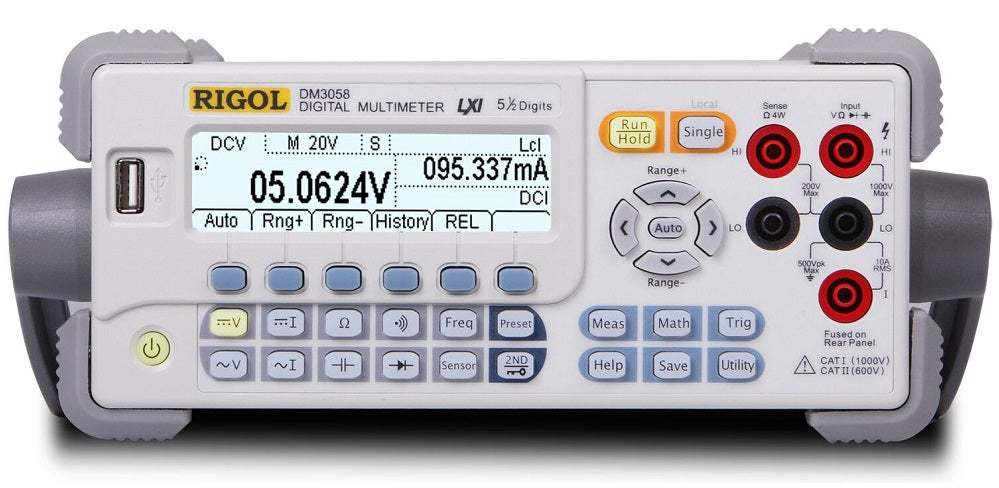

RIGOL DM3058 5½ Digit Digital Multimeter

RIGOL DM3058 5½ Digit Digital Multimeter

$657
$657 $730
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

RIGOL DM3058 5½ Digit Digital Multimeter

Key Features At A Glance

  • Real 5½-digit reading resolution with dual-display for high-precision, multifunction measurement
  • Up to 123 readings per second measurement speed
  • True-RMS AC voltage (200 mV–750 V) and AC current (20 mA–10 A) measurement
  • DC voltage 200 mV–1000 V, DC current 200 µA–10 A, 2-/4-wire resistance 200 Ω–100 MΩ
  • Capacitance 2 nF–10000 µF, frequency 20 Hz–1 MHz, plus continuity and diode test
  • USB Device/Host and RS-232C standard; LAN and GPIB on DM3058 for system integration
  • Any-sensor measurement (DCV, DCI, Freq, 2WR, 4WR, TC) with built-in thermocouple cold-junction compensation
  • First 5½-digit DMM to pass the LXI Criterion (LXI Class C); SCPI command set compatible with mainstream multimeters
View full details
More Details
Specifications
Datasheets

The RIGOL DM3058 is a 5½-digit digital multimeter built around a dual-display architecture and designed for high-precision, multifunction, and automatic measurement. Its dual-display function presents two characteristics of a single signal simultaneously, doing the work that once required two separate multimeters or two sequential measurements.

Its documented application set spans research and development laboratories, scientific research and education, detection and maintenance, quality test, and automatic production test. Preset configuration modes simplify operator workflow on a production line, where ten groups of preset configurations can be stored and recalled, while the dual-display and full measurement set serve bench characterization work equally well.

Compare Other Models in This Series

The DM3058 series comprises two 5½-digit digital multimeters — the DM3058 and the DM3058E — that share an identical measurement architecture, function set, and accuracy specifications. Both deliver dual-display operation, true-RMS AC measurement, any-sensor capability, and the same measurement ranges across DC voltage, DC current, AC voltage, AC current, resistance, capacitance, frequency, and period.

The two models are distinguished by their remote-interface configuration rather than by measurement performance, letting a buyer match connectivity to the application without trading away measurement capability.

Each model below is listed on its own dedicated product page with condition-matched pricing for the new unit you select. Choose the model that fits your interface and application requirements, then pick the listing whose condition and price suit your needs.

The DM3058 is the interface-complete member of the pair, adding 10/100 Mbit LAN and GPIB to the shared USB and RS-232C set. It is the model identified as the first 5½-digit digital multimeter to pass the LXI Criterion, conforming to LXI Class C, Version 1.1, and it supports web-page virtual-panel remote control.

The single functional difference between the two models is connectivity: the DM3058 supports LAN and GPIB interfaces while the DM3058E does not. Both share USB Device, USB Host, and RS-232C. LXI Class C compatibility and web-based remote control likewise apply to the DM3058.

Buyers whose workflow relies on LAN-based system integration, web-panel remote control, or GPIB bus control should select the DM3058; where those interfaces are not required, the DM3058E offers the identical measurement capability over USB and RS-232C. The comparison table below details the interface differences side by side.

Model Digits DC Voltage Interfaces
DM3058 5½ 200 mV ~ 1000 V USB Device, USB Host, LAN, RS-232, GPIB
DM3058E 5½ 200 mV ~ 1000 V USB Device, USB Host, RS-232

Additional differences in specifications beyond the few shown above are not listed here — see each model's full specifications below.

Accessories Supplied

  • A Power Cord that fits the standard of destination country
  • Two Test Leads (black and red)
  • Two Alligator Clips (black and red)
  • An USB Data Cable
  • A Backup Fuse
  • A Quick Guide
  • User's Guide and Application software (CD-ROM)

Product Core & Specifications

Specification Value
Basic Measurement Ranges
DC Voltage 200 mV ~ 1000 V
DC Current 200 μA ~ 10 A
AC Voltage (True-RMS) 200 mV ~ 750 V
AC Current (True-RMS) 20 mA ~ 10 A
2-Wire, 4-Wire Resistance 200 Ω ~ 100 MΩ
Capacitance 2 nF ~ 10000 μF
Continuity Test Range fixed at 2 kΩ
Diode Test Range fixed at 2.0 V
Frequency 20 Hz ~ 1 MHz
Period 1 μs ~ 0.05 s
DC Voltage Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
200.000 mV 0.015 + 0.004
2.00000 V 0.015 + 0.003
20.0000 V 0.015 + 0.004
200.000 V 0.015 + 0.003
1000.00 V 0.015 + 0.003
DC Current Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
200.000 μA (load voltage < 8 mV) 0.055 + 0.005
2.00000 mA (< 80 mV) 0.055 + 0.005
20.0000 mA (< 0.05 V) 0.095 + 0.020
200.000 mA (< 0.5 V) 0.070 + 0.008
2.00000 A (< 0.1 V) 0.170 + 0.020
10.0000 A (< 0.3 V) 0.250 + 0.010
Resistance Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
200.000 Ω (1 mA) 0.030 + 0.005
2.00000 kΩ (1 mA) 0.020 + 0.003
20.0000 kΩ (100 μA) 0.020 + 0.003
200.000 kΩ (10 μA) 0.020 + 0.003
2.00000 MΩ (1 μA) 0.040 + 0.004
10.0000 MΩ (200 nA) 0.250 + 0.003
100.000 MΩ (200 nA || 10 MΩ) 1.75 + 0.004
Diode Test Accuracy (1 Year, 23℃ ± 5℃)
2.0000 V (1 mA) 0.05 + 0.01
Continuity Test Accuracy (1 Year, 23℃ ± 5℃)
2000 Ω (1 mA) 0.05 + 0.01
True RMS AC Voltage Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
200.000 mV, 20 Hz – 45 Hz 1.5 + 0.10
200.000 mV, 45 Hz – 20 kHz 0.2 + 0.05
200.000 mV, 20 kHz – 50 kHz 1.0 + 0.05
200.000 mV, 50 kHz – 100 kHz 3.0 + 0.05
2.00000 V, 20 Hz – 45 Hz 1.5 + 0.10
2.00000 V, 45 Hz – 20 kHz 0.2 + 0.05
2.00000 V, 20 kHz – 50 kHz 1.0 + 0.05
2.00000 V, 50 kHz – 100 kHz 3.0 + 0.05
20.0000 V, 20 Hz – 45 Hz 1.5 + 0.10
20.0000 V, 45 Hz – 20 kHz 0.2 + 0.05
20.0000 V, 20 kHz – 50 kHz 1.0 + 0.05
20.0000 V, 50 kHz – 100 kHz 3.0 + 0.05
200.000 V, 20 Hz – 45 Hz 1.5 + 0.10
200.000 V, 45 Hz – 20 kHz 0.2 + 0.05
200.000 V, 20 kHz – 50 kHz 1.0 + 0.05
200.000 V, 50 kHz – 100 kHz 3.0 + 0.05
750.000 V, 20 Hz – 45 Hz 1.5 + 0.10
750.000 V, 45 Hz – 20 kHz 0.2 + 0.05
750.000 V, 20 kHz – 50 kHz 1.0 + 0.05
750.000 V, 50 kHz – 100 kHz 3.0 + 0.05
True RMS AC Current Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
20.0000 mA, 20 Hz – 45 Hz 1.5 + 0.10
20.0000 mA, 45 Hz – 2 kHz 0.50 + 0.10
20.0000 mA, 2 kHz – 10 kHz 2.50 + 0.20
200.000 mA, 20 Hz – 45 Hz 1.50 + 0.10
200.000 mA, 45 Hz – 2 kHz 0.30 + 0.10
200.000 mA, 2 kHz – 10 kHz 2.50 + 0.20
2.00000 A, 20 Hz – 45 Hz 1.50 + 0.20
2.00000 A, 45 Hz – 2 kHz 0.50 + 0.20
2.00000 A, 2 kHz – 10 kHz 2.50 + 0.20
10.0000 A, 20 Hz – 45 Hz 1.50 + 0.15
10.0000 A, 45 Hz – 2 kHz 0.50 + 0.15
10.0000 A, 2 kHz – 5 kHz 2.50 + 0.20
AC Additional Wave Crest Factor Error (not Sine, for frequency < 100 Hz)
Wave crest coefficient 1 - 2 0.05 (% range)
Wave crest coefficient 2 - 3 0.2 (% range)
Frequency / Period Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
200 mV – 750 V, 20 Hz – 2 kHz 0.01 + 0.003
200 mV – 750 V, 2 kHz – 20 kHz 0.01 + 0.003
200 mV – 750 V, 20 kHz – 200 kHz 0.01 + 0.003
200 mV – 750 V, 200 kHz – 1 MHz 0.01 + 0.006
20 mA – 10 A, 20 Hz – 2 kHz 0.01 + 0.003
20 mA – 10 A, 2 kHz – 10 kHz 0.01 + 0.003
Capacitance Accuracy (1 Year, 23℃ ± 5℃, ± (% of reading + % of range))
2.000 nF (200 nA) 3 + 1.0
20.00 nF (200 nA) 1 + 0.5
200.0 nF (2 μA) 1 + 0.5
2.000 μF (10 μA) 1 + 0.5
200 μF (100 μA) 1 + 0.5
10000 μF (1 mA) 2 + 0.5
DC Voltage Characteristics
Input Resistance (200 mV, 2 V) 10 MΩ or > 10 GΩ selectable
Input Resistance (20 V, 200 V, 1000 V) 10 MΩ ± 2%
Input Bias Current < 90 pA, 25℃
Input Protection 1000 V on all ranges
Important: For continuous current higher than DC 7 A or AC RMS 7 A, 30 seconds off after 30 seconds on is recommended.
Important: The only difference between DM3058 and DM3058E is that DM3058E does not support LAN and GPIB interfaces.
