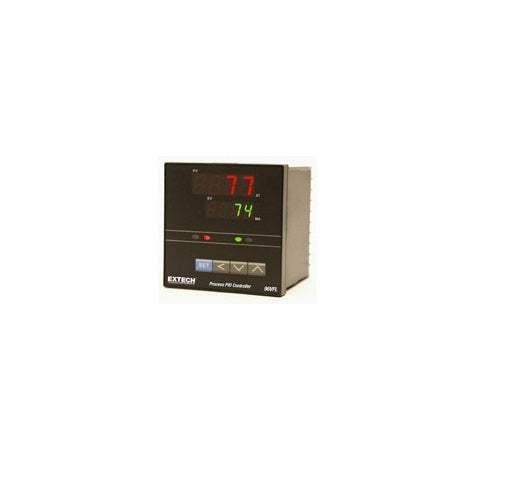

96VFL11 Extech Controller New

96VFL11 Extech Controller New

$313.60
$313.60 $351.99
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Two relay outputs
  • Dual 4-digit LED displays of process and setpoint values
  • User friendly menus and tactile keypad for easy programming
  • One-touch autotuning for quick setup & precise control
  • Fuzzy Logic PID offers intuitive control simulating human control logic
  • Two "Latching" alarm relays standard with 8 Alarm modes
  • Accepts thermocouple and RTD inputs
  • This product is also available with 4-20mA output - 96VFL13
View full details
More Details
Specifications
Datasheets

Specifications:

  • Control/Alarm Relay: 5 Amp @ 110V, SPST (resistive load)
  • DC Current Output: 4-20mA (resistive); Impedance < 600 ohms
  • Accuracy: Thermocouple: ±1.8°F (1ºC); RTD: ±0.36°F (0.2ºC)
  • Sampling Time: Four (4) samples per second
  • LED Display: Two 4-digit displays for Process Value, Setpoint, and programming modes
  • LED Status: Alarm and Control output status
  • Control Modes: Fuzzy Logic enhanced three-term PID with Auto Tune

96VFL11 Temperature PID controller offers Fuzzy Logic enhanced PID and a Soft-Start feature that protects heaters from cold-starts. PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required. Accepts thermocouple and RTD inputs. Single stage Ramp and Soak program with Ramp-to-Set point Limit that can be combined with the Soft Start feature for critical process demands. Complete with mounting bracket hardware and screw terminals for easy wiring. Also available with 4-20mA output (96VFL13).

Model No

96VFL11

Condition

New

Manufacturer

Extech

Extech_48VFL11_48VFL13_96VFL11_96VFL13
