• 66205 Chroma Power Meter
1 1
Used
Compare
lab tested

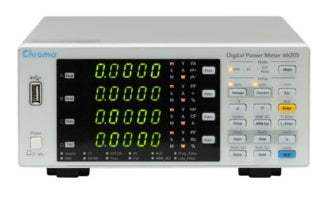

66205 Chroma Power Meter Used

66205 Chroma Power Meter Used

$1,595
$1,595 $1,595
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Voltage Ranges: 15/30/60/150/300/600 Vrms, 1200Vrms (optional)
  • Current Ranges: 0.005/0.02/0.05/0.2/0.3/0.5/2/5/20/30 Arms
  • Frequency Range: DC, 10Hz~10kHz
  • Embedded high speed DSP, 16 bits Analog/Digital converters with max sampling rate up to 250kHz
  • Capable of meeting the IEC 61000-4-7 harmonics measurement requirements
  • Smart Range function provides seamless power integration measurement under auto range mode
  • Supports external shunt and CT for higher current applications
  • 5 mA minimum current range & 0.1mW power resolution
  • Meets ENERGY STAR /EN 50564/ IEC 62301/ErP requirements
  • User-define criteria provides automatic PASS/FAIL indications
  • THD and user-specify order distortion measurement
  • Inrush current and energy measurements
  • Voltage/ Current harmonics measurements up to 100 orders
  • USB (Host) interface provides data logging functionality
  • Support GPIB, USB, RS232, LAN (option) interface
Share on
View full details
More Details
Specifications
Datasheets

The 66205 is the 2nd generation of the 66200 series power meter designed specifically for single-channel measurement. Its state of art design can provide highly accurate power measurements to meet the requirements of IEC 62301/EN50564 standards. Functionality improvements of the 66205 increase power measurement capabilities to a wider range of applications. Cycle-based measurement, 1.5sec smoothing filter, and grouping settings are preferable for harmonics measurement requirements according to IEC 61000-4-7. Harmonic and total harmonics distortion functions are standard.

*The image is a representation of selection. See specifications for product details.

Model No

66205

Condition

Used

Manufacturer

Chroma

Chroma 66205
Compare All Models
