Features:

High insulation resistance over a wide temperature range

  • Capacitance: 10 µF
  • Tolerance: ±10%
  • Temperature: -55°C to +70°C @ rated voltage +105°C @ 50% of rated voltage
  • Dissipation factor: Less than 1% at 25°C (measured at 120 Hz)
  • Dielectric strength: Twice the rated VDC @ 25°C for two minutes
  • Insulation resistance: 2500 MΩ @ 25°C rated voltage for two minutes. (Insulation resistance greater than 500 kΩ cannot be measured due to the internal bleeder resistor)
  • Excellent stability with long life
  • Built-in discharge resistor for safety
  • Designed for bulkhead or bench mounting
Share on
View full details
More Details
Specifications
Datasheets

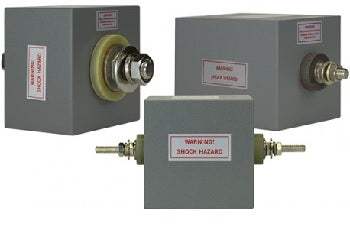

Solar feed-thru capacitors are highly reliable and ruggedly constructed units for general use in screen rooms and other environments. The metal case with four husky threaded inserts lends itself to convenient installation with minimal effort.

The threaded feed-thru stud will accommodate power current of the listed rating without heating or voltage loss. Table 2 indicates available current and voltage ratings of the various Solar 10 µF Feed-Thru Capacitors. All have low dissipation factors, high temperature ratings, high insulation resistance, doubly rated dielectric strength, and long life characteristics. To satisfy safety requirements, a bleeder resistor is included within the capacitors, which serves to discharge the capacitors when applied voltage is removed.

Model No

6512-106R

Condition

Used

Manufacturer

Solar
