• 3760 Keithley Switch Card
1 1
New
Earn Loyalty with Rewards
Compare

3760 Keithley Switch Card New

3760 Keithley Switch Card New

$2,120
$2,120 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Channels Per Card: 10
  • Contact Configuration: 2-pole Form C with common guard
  • Connector Type: Screw terminal, #16AWG maximum wire size
  • Relay Drive Current: 80 mA per relay typical
  • Maximum Switching Levels: 300 V, 5 A, 100 VA (resistive load only)
  • Maximum Applied Voltage: 500 V
  • Contact Life: >107 closures (cold switching), >105 closures (at maximum signal level)
  • Contact Resistance: <0.15 Ω to rated life
  • Contact Potential: 1 mV max.
  • Warm up: One hour to rated accuracies
  • Actuation Time: <15 ms, exclusive of mainframe
  • Relay type: 2 Form C nonlatching electromechanical
  • Relay drive current: 80 mA per relay (typical)
  • Relay drive scheme: Direct
  • Channel Isolation: >109 Ω, <50 pF
  • Input Isolation: >107 Ω, <150 pF
  • Common Mode Voltage: 500 V peak
  • EMC: Conforms to all European Union directives
  • Operating Environment: 0° to 50°C, up to 35°C at 70% relative humidity
  • Storage Environment: –25°C to 65°C
  • Altitude: 0 to 2000 m (0 to 6562 feet) above sea level
  • Pollution degree: 2
View full details
More Details
Specifications
Datasheets

Available Services

  • 3760-3Y-EW 1-year factory warranty extended to 3 years from date of shipment
  • 3760-5Y-EW 1-year factory warranty extended to 5 years from date of shipment

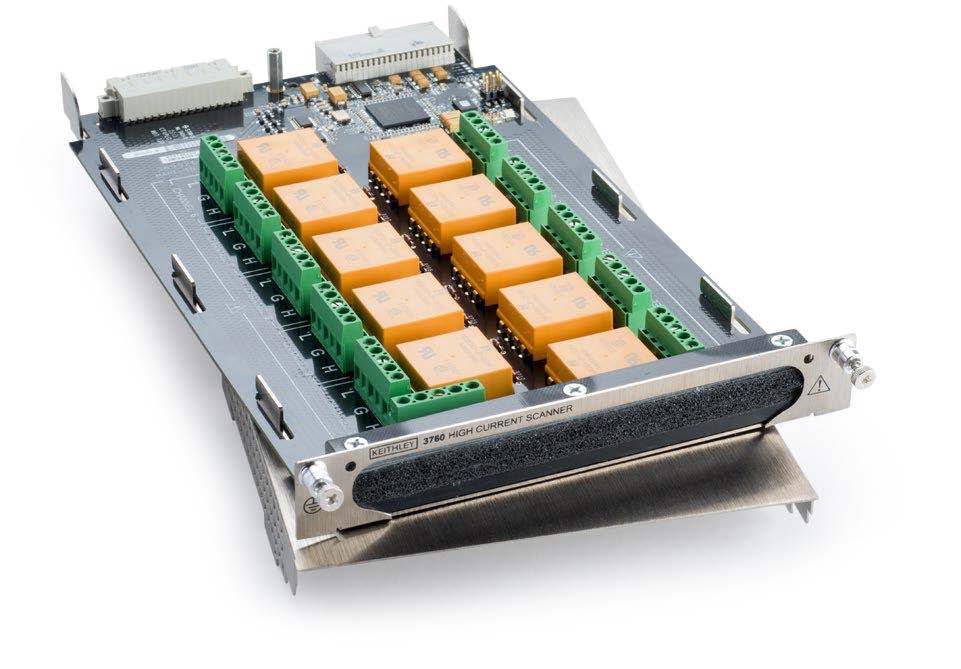

The Keithley 3760 has ten 2-pole channels and features 5 A contacts. The switching is designed to maintain current paths for signals not connected to the output or, when internal jumpers are removed, to provide high input resistance for making voltage measurements. The 3760 does not connect to the 6 common buses on the 3706A backplane. Daisy chaining cards can be achieved by using an output channel. Semiconductor testing, materials research, power supply testing, solar cell measurements, electrochemical applications and IC testing are among the applications simplified with the 3760 High Current Multiplexer Card.

Model No

3760

Condition

New

Manufacturer

Keithley

Keithley 3760
