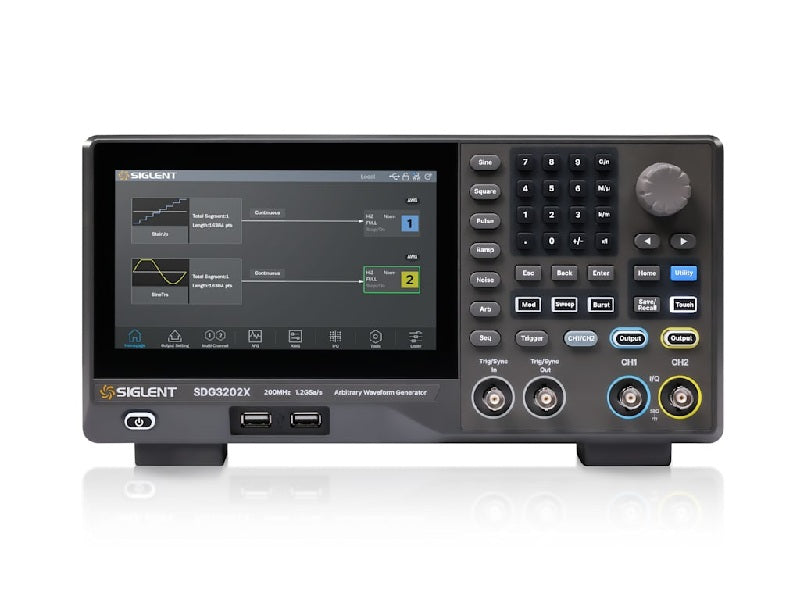

Siglent SDG3202X
Arbitrary Waveform Generator (200 MHz, 2 Channels, 1.2 GSa/s)
The SDG3000X series dual-channel function/arbitrary waveform generator is available with multiple bandwidths, a sampling rate of 1.2 GSa/s sampling rate with 16-bit vertical resolution. Based on traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector-signal output functions to meet a wider range of application needs.
Innovative EasyPulse Technology
When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.
Powerful Sequence Playback Function
Provides flexible sequence playback function to easily cope with various scenario tests. The maximum waveform storage depth of each channel is 40 Mpts (requires purchase of option). Easily set the number of cycle times for each waveform and the order of waveform playback.
It supports up to 1024 segments. During playback, it can also indicate the segment currently being played, allowing you to control the test.
Five operating modes: continuous, triggered, burst, single, and advanced. The advanced operating mode allows you to set the trigger mode for each segment. Four trigger sources are available: "Auto," "External," "Manual," and "Timer."
Built-In Multi-Pulse Function
The built-in dual pulse output function, combined with Siglent's oscilloscope (sold separately), can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software.
Supports up to 30 pulses and can set each pulse width and pulse interval. Four trigger sources are available: "Internal," "External," "Manual," and "Timer".
Vector Signal Output (Requires option, sold separately)
The SDG3000X series supports baseband or IF signals and can generate IQ signals (option sold separately) of commonly used modulation types such as ASK, FSK, PSK, QAM, etc. SDG3000X can achieve excellent EVM performance at any symbol rate in the range of 250 Symb/s - 50 MSymb/s. The built-in digital orthogonal modulator can modulate the IQ signal to any frequency in the range of 200 MHz.
Sweep
Supports three sweep modes: frequency, amplitude, and frequency and amplitude, making it easy to implement frequency sweep and amplitude sweep tests.
Supports three sweep types: linear, log and step, and three sweep directions of up, down, and up_down.
Three trigger sources are available: internal, external and manual.
