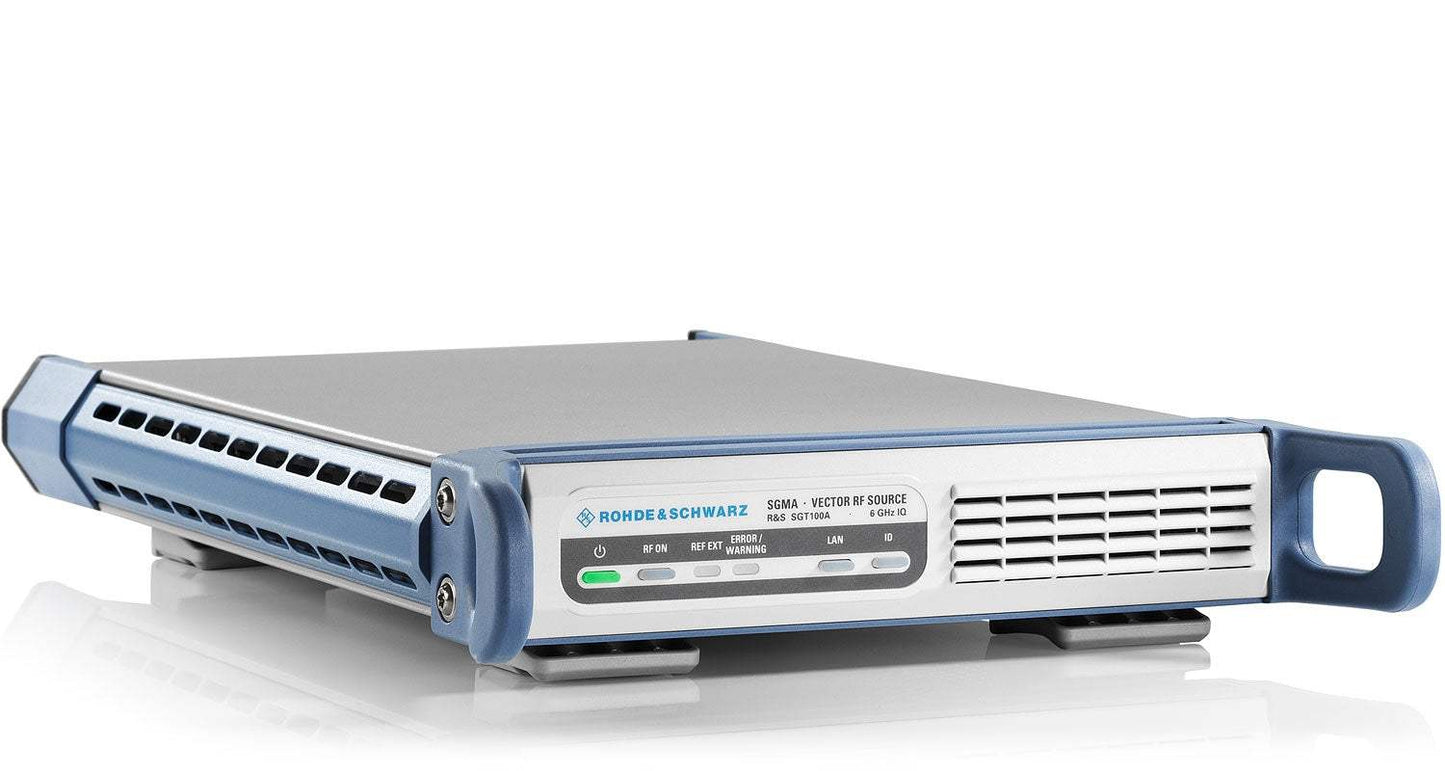

SGT100A Rohde & Schwarz RF Generator Used

SGT100A Rohde & Schwarz RF Generator Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Frequency range: 1 MHz to 3 GHz
  • With the SGT-KB106 option: 1 MHz to 6 GHz
  • Setting time with PCIe/Ethernet remote control < 500 μs
  • Input frequency for external reference into the R&S®SGT100A 10 MHz, 13 MHz, 100 MHz, 1000 MH
  • Fastest vector signal generator with frequency and level switchover times of typ. 240  μs for optimized throughput in production
  • Smallest standalone vector signal generator up to 6 GHz with integrated baseband generator (1 HU ½ 19")
  • Integrated baseband generator with I/Q modulation bandwidth of up to 240 MHz (in RF) supporting all advanced digital standards, including IEEE 802.11ac
  • Excellent RF performance for EVM and ACLR
  • Easy signal generation for digital standards such as LTE and LTE-Advanced using the R&S®WinIQSIM2™ simulation software
  • Ideal enhancement for the R&S®SMW200A in MIMO applications with more than two receiving antennas
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

The R&S®SGT100A is an RF vector signal generator with an integrated baseband generator. It has been optimized for use in production and automated applications. Designed as a fast and compact, space-saving solution, it provides top speed to ensure optimized throughput and fits into any test system.

The R&S®SGT100A has a clear focus on automated environments. Its main characteristics are high speed and a compact design. The R&S®SGT100A is the first 1 HU, ½ 19" vector signal generator up to 6 GHz with an integrated baseband generator. The radio frequency chain has been optimized for fastest frequency and level switchover times. In the baseband, the multisegment waveform mode helps users quickly switch from one test signal to the next.

Though compact in size, the R&S®SGT100A has excellent RF characteristics (e.g. signal quality and level accuracy) that are on par with those of larger high-end instruments. Maximum output level, level repeatability and excellent EVM performance are key characteristics in production environments.

Thanks to its flexible customization concept, options can be easily added and configured via key codes, allowing customers to directly unlock additional functionalities and easily respond to various production requirements. Easy maintenance and a three-year calibration cycle help keep total cost of ownership to a minimum.

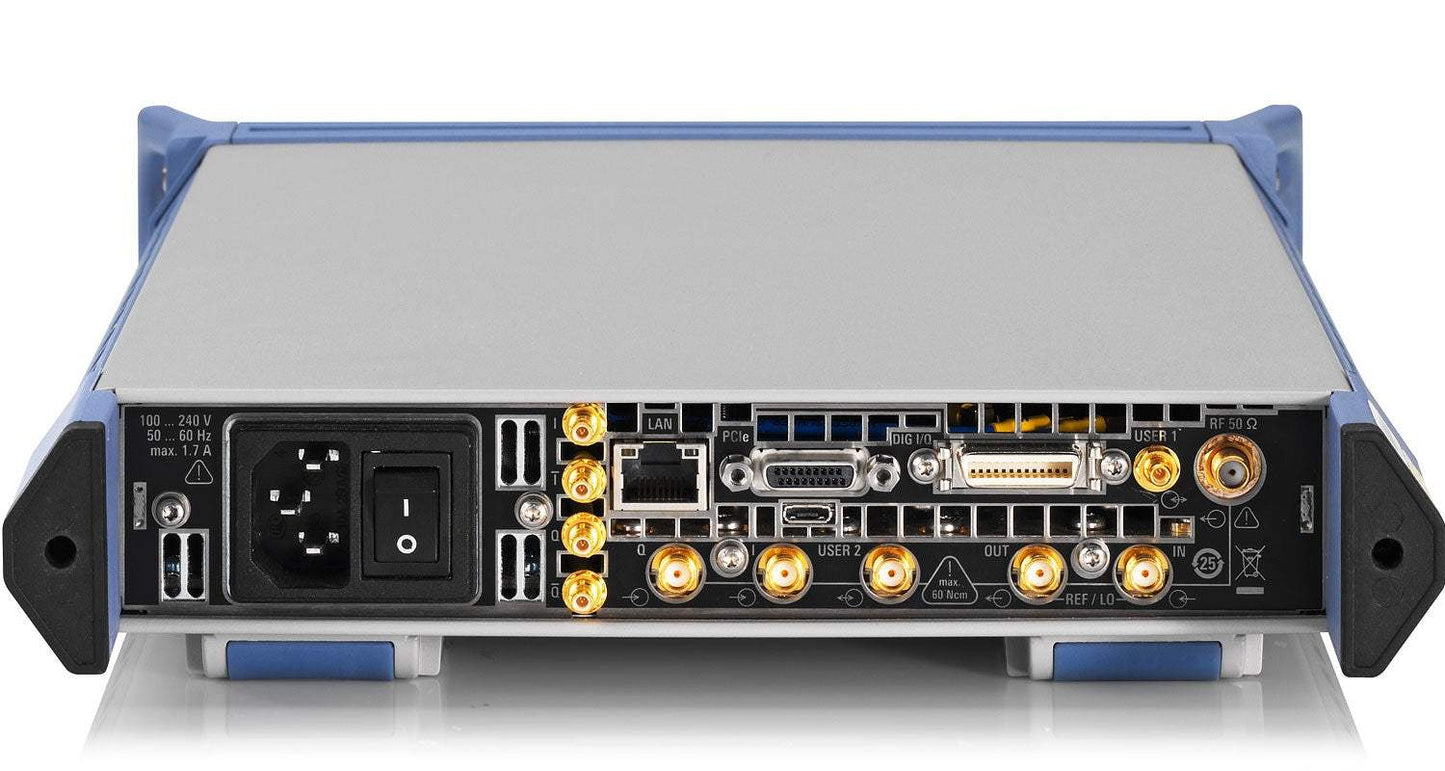

Equipped with a LAN, USB and PCIe interface, the R&S®SGT100A allows remote control of test equipment in automated applications.

On the front panel, LEDs indicate the generator's operating status and pushbuttons allow users to operate the basic functions. The R&S®WinIQSIM2™ simulation software makes it easy to generate test signals in line with different digital standards such as LTE, IEEE 802.11a or NFC and directly upload them to the R&S®SGT100A. The supplied R&S®SGMA-GUI PC software can be used for manual operation.

Model No

SGT100A

Condition

Used

Manufacturer

Rohde & Schwarz

Frequency

6 GHz

B1

Reference oscillator OCXO

K200

Waveform package for signals from R&S®WinIQSIM2™1) , R&S®Pulse Sequencer and R&S®Pulse Sequencer (DFS) (1 Waveform)

K510

ARB baseband generator , 32 Msample , 60 MHz RF bandwidth

KB106

Frequency extension to 6 GHz
