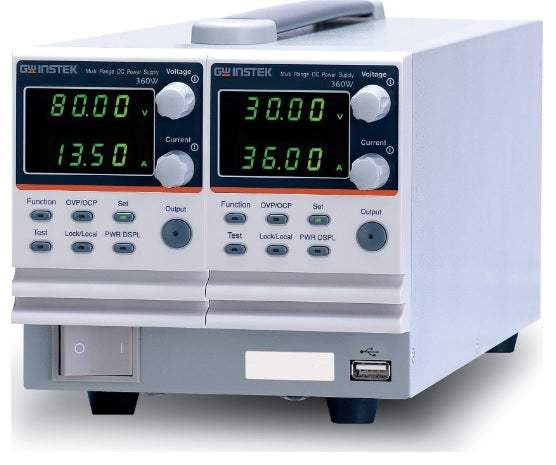

PSW-720L55 Instek DC Power Supply

PSW-720L55 Instek DC Power Supply

$2,675
$2,675 $2,675
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Dual Channel, Max 720W, Programmable Switching DC Power Supply
  • Voltage combination - Channel 1: 160V | Channel 2: 160V
  • Advanced web server: execute SCPI commands, control power supply through the server, data log, edit output sequence
  • Size: 1/3 Rack 3U
  • LAN, USB, and external analog remote control terminal communication interfaces
  • Optional GPIB-USB adapter and RS232-USB available (sold separately)
  • Adjustable rising and falling slew rate
  • Output latency between channels with the same voltage module is less than 0.1ms
  • CC/CV priority mode selection is ideal for battery and LED
View full details
More Details
Specifications
Datasheets
Manuals

The Instek PSW-720L55 is a dual-channel, wide range output, programmable switching DC power supply. The maximum power is 720W. Channel one and channel two are rated for 160V output voltage and 7.2A output current.

The PSW-Multi series includes 37 models including 13 dual-channel models with a rated power of 720W, and 24 triple-channel models with a rated power of 1080W. The rated voltages of low voltage modules are 30V, 40V, 80V, 160V. The rated voltages of high voltage modules are 250V and 800V.

*The image is a representation of selection. See specifications for product details.

Model No

PSW-720L55

Condition

New

Volts

160 V

Manufacturer

Instek

Current

7.2 A

Power

720 W
