PEL-507-80-140 Instek DC Electronic Load New

PEL-507-80-140 Instek DC Electronic Load New

$2,352
$2,352 $2,352
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Programmable DC electronic load
  • Maximum power: 700W
  • Maximum current: 140A
  • Maximum voltage: 80V
  • Simultaneous, five digit display of voltage, current and watts
  • Short-circuit time can be set during short-circuit test
  • Automatic test function of overcurrent protection/overpower protection
  • Battery discharge test function can set the discharge stop voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time
  • Surge test can simulate boot overshoot current and transient current from hot plugging
  • Constant current, constant resistance, constant voltage, constant power and Dynamic mode
View full details
More Details
Specifications
Datasheets
Manuals

Programmable DC Load (80V/140A/700W)

The PEL-500 series single-channel electronic load has a total of 5 models and provides 0~80V/ 0~500V voltage operating ranges and 250~700W power operating range. The series can be applied to R&D, quality control, ATE system and production test, including voltage source/current source test; switching power supply transient response; constant voltage mode for current limiting test; battery simulation; and battery discharge test.

Surge function

The Surge function allows users to set Surge current, Normal current, Surge Time and Surge STEP according to test requirements.

Surge Time can be set from 10 to 1000ms, and Surge STEP can be set from 1 to 5.

Surge and normal current ranges for surge testing are model dependent:

  • PEL-503-80-50
    • 0-50A
  • PEL-504-80-70
    • 0-70A
  • PEL-504-500-15
    • 0-15A
  • PEL-507-80-140
    • 0-140A
  • PEL-507-500-30
    • 0-30A

Battery discharge test function

The battery discharge test function can determine the conditions to stop the discharge according to the test requirements of the DUT, including setting the stop discharge voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time.

GO/NG Function

The GO/NG function is applied to monitor the test result. When the test result exceeds the preset upper/lower limit, the front panel display screen will display NG. Otherwise, GO is displayed. The GO/NG function can edit the working procedures of the test in CC mode/CR mode/CV mode/CP mode. After the test procedures are executed, the test result will be displayed on the front panel display screen, which is represented by GO or NG.

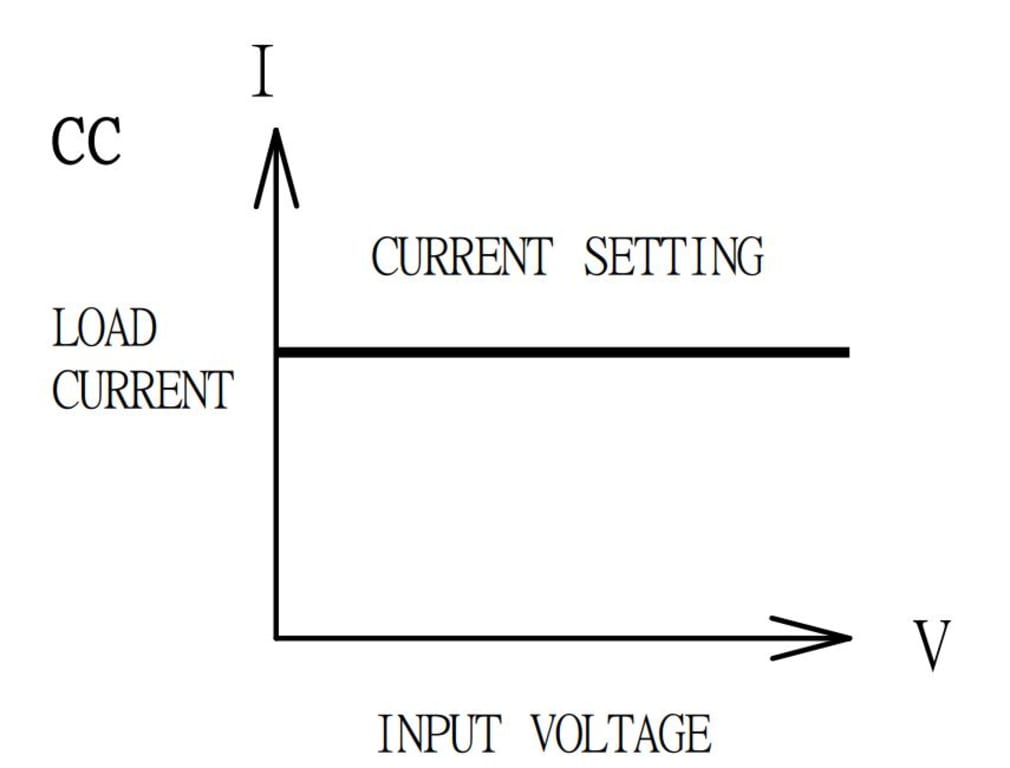

Constant current mode

With the operating mode of constant current, the PEL-500 series electronic load will sink a current in accordance with the programmed value regardless of the input voltage.

Model No

PEL-507-80-140

Condition

New

Volts

80 V

Amps

140A

Power

Single

Power

700W

Manufacturer

Instek

Instek PEL-500 Series Brochure
Instek PEL-500 Series User Manual
Compare All Models
