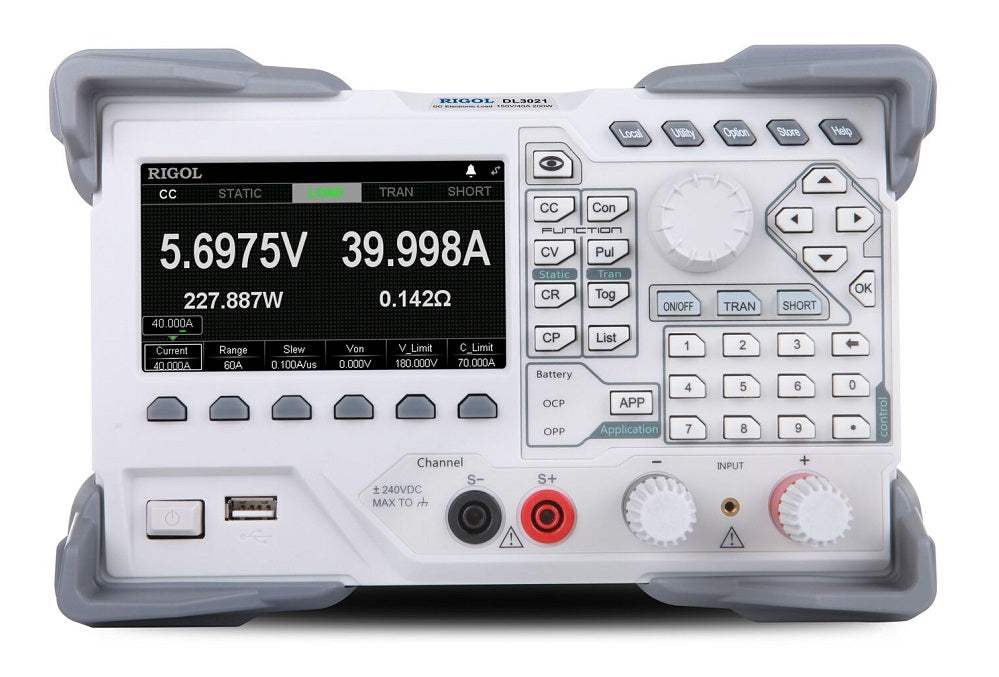

DL3021 Rigol DC Electronic Load New

DL3021 Rigol DC Electronic Load New

$499
$499 $499
In Stock
Shipping calculated at checkout.
Calibrations
Optional:
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Single channel, DC150 V/40 A, total power up to 200 W
  • Dynamic mode: up to 30 kHz
  • Adjustable current rising speed: 0.001 A/μs to 5 A/μs
  • Min. readback resolution: 0.1 mV,0.1 mA
  • 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
  • Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
  • 4 static modes: CC, CV, CR, CP
  • 3 dynamic modes: continuous, pulsed, toggled
  • List function supports editing as many as 512 steps
  • Battery test function, OCP test, OPP test, factory test function, etc.
  • Short-circuit test function
  • Power-off memory function
  • Built-in RS232/USB/LAN communication interface
  • USB-GPIB module (optional)
View full details
More Details
Specifications
Options
Datasheets

Accessories:

  • Power Cord
  • Either one of the following fuses: Fuse 50T-0200H 250 V 0.20 A (AC selector: 230 Vac), Fuse 50T-0315H 250 V 0.315 A (AC selector: 115 Vac)
  • Quick Guide (hard copy)
  • Shield

Applications:

  • General-purpose testing in the R&D lab
  • DC power supply industry, such as regulated power supply, constant current power supply, switching mode power supply (SMPS), module power supply, power adapter, etc.
  • Battery industry, such as various batteries and cell batteries
  • Charger industry, such as battery charger and cell phone charger
  • Power electronic device industry, such as MOSFET, IGBT, capacitor, and ballast resistor
  • Teaching experiment

The Rigol DL3021 is a programmable DC electronic load.

Model No

DL3021

Condition

New

Volts

150 V

Amps

40 A

Type

Single

Power

200 W

Manufacturer

Rigol

DIGITALIO

Digital I/O Option

FREQ

High Frequency Option

HIRES

Readback Resolution

LAN

LAN Interface

SLEWRATE

High Slew Rate Option

Rigol_DL3000_Series
