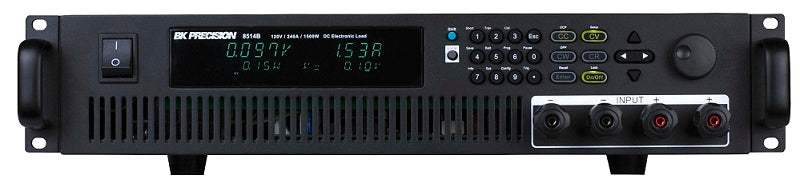

8514B B&K Precision DC Electronic Load New

8514B B&K Precision DC Electronic Load New

$3,735
$3,735 $3,735
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Maximum input power 1500 W
  • CC/CV/CR/CW operating modes
  • 16-bit voltage and current measurement system providing up to 0.1 mV / 0.1 mA resolution
  • Transient mode up to 10 kHz in CC mode
  • List mode function for custom step sequences
  • Supports both SCPI and backwards compatible 8500 series protocol
  • Store and recall up to 100 instrument settings Adjustable slew rate in CC mode
  • Flexible triggering options via front panel, external input, timer, or bus
  • Built-in battery test function, specify cut-off voltage, capacity level, and time
  • Test modes to validate the OCP/OPP protection functions of a power supply
  • OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection
  • Remote sense
  • Short-circuit test
  • Analog current control and monitoring
  • Two thermostatically controlled fans (linear-speed control to minimize noise)
  • Integrated meter measures voltage, current, & power
  • Rack-mountable
  • Warranty: 3 Years
View full details
More Details
Specifications
Datasheets

Accessories (included):

  • AC Power Cord
  • USB Cable
  • Calibration Certificate
  • Test Report
  • Rack-Mount Ears

Applications:

  • Performance verification of photovoltaic solar panels
  • CR-LED mode to simulate loading behavior and test LED drivers
  • Fuel and solar cell tests
  • Battery test and power supply evaluations

Specifications:

  • 1500 W
  • 120 V
  • 240 A

The 8514B programmable DC electronic load improves upon all aspects of its predecessor while maintaining dependability at a value price. A set of comprehensive functions make these loads a versatile tool for testing and evaluating DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.

Model No

8514B

Condition

New

Volts

120 V

Amps

240 A

Type

Single

Power

1.5 kW

Manufacturer

B&K Precision
