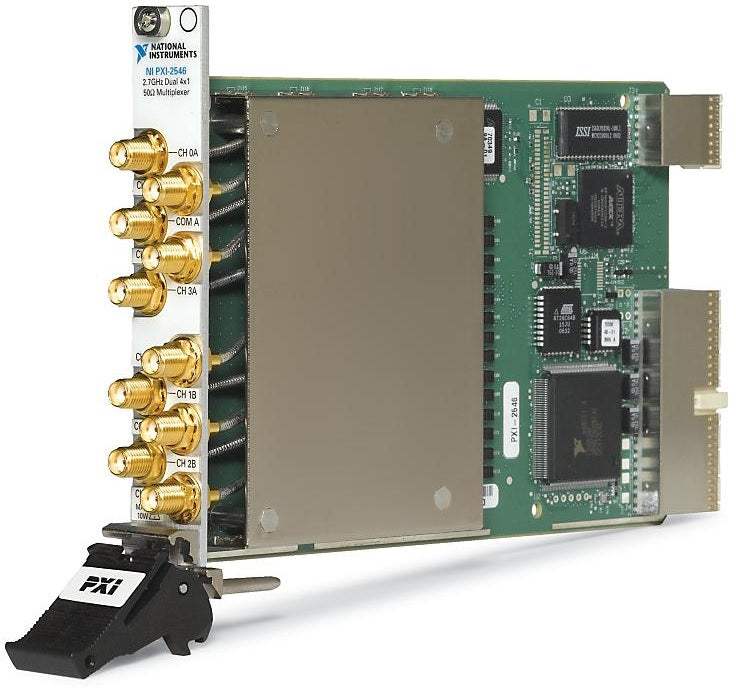

PXI-2546 National Instruments PXI Used

PXI-2546 National Instruments PXI Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Specifications

  • Number of Banks: 2
  • Number of Channels: 4
  • Switch Bandwidth: 2.7 GHz
  • Impedence: 50 Ohms
  • Max Insertion Loss: -1.35 dB
  • Voltage AC: 30 Volts
  • Max Carry Current AC: 0.5 Amps
Share on
View full details
More Details
Specifications
Datasheets

The PXI-2546 is a pxi from National Instruments. The PXI RF Multiplexer Switch Modules are ideal for high-channel-count applications that need to connect measurement or signal generation instruments to various test points on devices or units under test (DUTs or UUTs). PXI RF Multiplexer Switch Modules use a variety of relay types, including electromechanical armature relays, reed relays, field-effect transistor (FET) relays, and solid-state relays, each with their own benefits, allowing you to choose a multiplexer that fits your requirements.

Model No

PXI-2546

Condition

Used

Manufacturer

National Instruments

National Instruments PXI-2546 Datasheet
