HP-6350 Agilent Voltage Probe Used

HP-6350 Agilent Voltage Probe Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Maximum Frequency: 350 MHz
  • Attenuation: 1:1 & 1:10
  • Max. input voltage: 300 V DC & 600 V DC
  • Input impedance: 1 Mohm & 10 Mohm
  • Input Capacitance: 58nS & 10 to 35 pF
  • Bandwidth: DC to 6 MHz & 350 Mhz
  • Rise time: 58 ns & 1 ns
Share on
View full details
More Details
Specifications

The Agilent HP-6350 is a 1:1-1:10 selectable passive-high impedance oscilloscope probe with a 350 MHz bandwidth (1:10) designed for use on instruments having an input impedance of 1 MΩ shunted by 20 pF. However, it may be compensated for use with instruments having an input capacitance of 10 - 35 pF.

The probe incorporates a two position slide switch in the head which selects the attenuation of X1, X10 position.

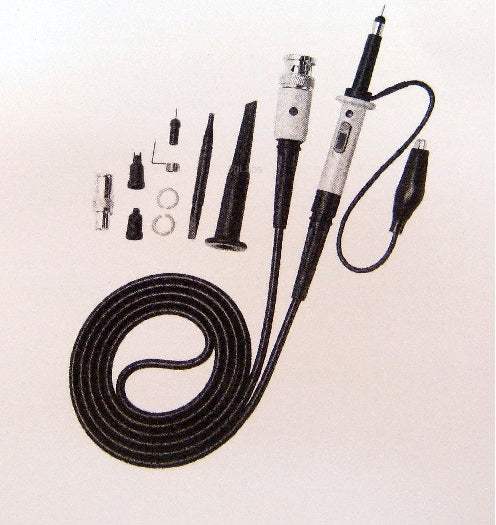

The image is a representation of selection. See specifications for product details. The image may show features that are not available on this specific product.

Model No

HP-6350

Condition

Used

Manufacturer

Agilent

Frequency

350 MHz

Voltage

600 V
