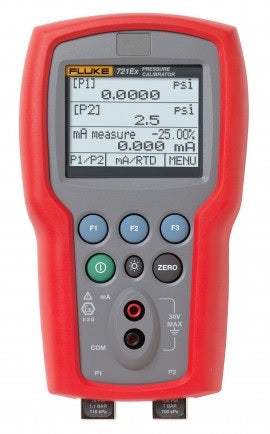

721EX-1601 Fluke Pressure Calibrator New

721EX-1601 Fluke Pressure Calibrator New

$3,044.99
$3,044.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
  • Two isolated, stainless steel, pressure sensors with 0.025% accuracy
  • Switch test on both pressure inputs
  • Pressure displayed in the user's choice of 19 engineering units: psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
  • Precision temperature measurement with optional RTD probe
  • Measures 4 to 20 mA signals
  • Large backlit graphic display shows up to three inputs simultaneously
  • Store five instrument setups for recall and use
View full details
More Details
Specifications
Datasheets

Accessories (Included):

  • 721EX-1601 Dual Sensor Pressure Calibrator
  • Test leads
  • 4 AA batteries
  • Manual
  • Calibration certificate
  • Soft case

Specifications:

  • Pressure Range: Available from 16 to 36 psi (1.1 to 2.48 bar) with 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
  • Resolution: 0.001 psi (0.0001 bar)
  • Accuracy: ±0.025% f.s.
  • Current Range: 0 to 24mA
  • Resolution: 0.001mA
  • Accuracy: ±0.015% of rdg ±0.02 ohms; ±0.1°C (±0.2°F) ±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe accessory
  • Loop Supply Range: 24V
  • Temperature Range: -40 to 150°C (-40 to 302°F)
  • Connectors/Ports: Two, 1/8" NPT, 750P Series Pressure Module RTD Probe
  • Power Supply: (4) standard AA batteries
  • Dimensions: 7.9 x 4.3 x 2.3 (20 x 11 x 5.8 cm)
  • Weight: 035 kg (1 lb 3 oz)

The 721EX-1601 is a pressure calibrator from Fluke. Ideal for gas flow calibration (custody transfer) applications allowing you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). Features a 16 psig/100 psig pressure range.

Model No

721EX-1601

Condition

New

Manufacturer

Fluke

FLUKE 721 SERIES
Compare All Models
