MSO5104 Rigol Mixed Signal Oscilloscope New

MSO5104 Rigol Mixed Signal Oscilloscope New

$1,424.05
$1,424.05 $1,499
Shipping calculated at checkout.
Optional:
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Analog bandwidth: 100 MHz; bandwidth upgrade option supported
  • 4 analog channels (upgradable), standard 16 digital channels (LA probe required)
  • Up to 8 GSa/s real-time sample rate
  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfm/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table
  • Built-in advanced power analysis software (option)
  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
View full details
More Details
Specifications
Options
Datasheets

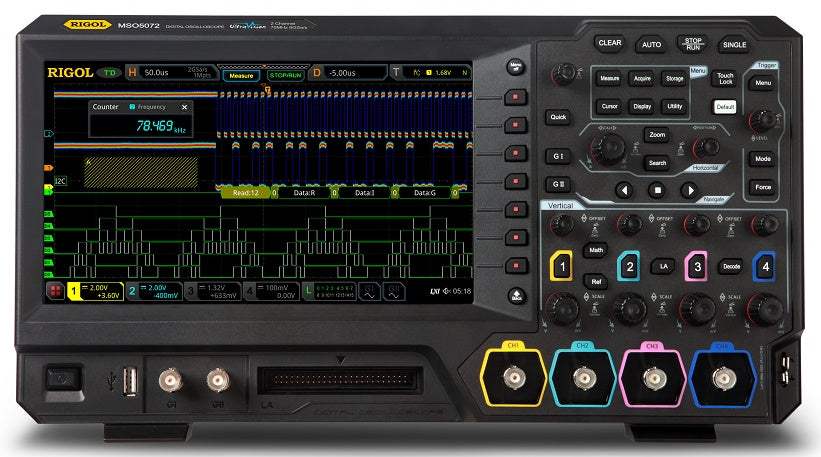

The MSO5104 digital oscilloscope is a high-performance oscilloscope model designed based on RIGOL UltraVision II technology. With a 9-inch capacitive multi-touch screen, the MSO5000 series integrates 7 independent instruments into one, delivering super sample bandwidth ratio, extremely high memory depth, and other excellent specifications. It is compact and portable in design, and all of the MSO series products support multiple channels, bandwidths, and the upgrade of the analysis software. As it integrates many functions of multiple instruments, different user groups can have more choices in selecting their desired product based on their needs, helping them save their budget to a large extent while enjoying the superior test support and user experience.

Model No

MSO5104

Condition

New

Manufacturer

Rigol

Channels

4+16

Frequency

100 MHz

Record length

100 MPts

Sampling rate

8 GS/s

PLA2216

16 digital channels active logic probe (dedicated probe for MSO5000 series)

DK-DS6000

Digital oscilloscope demonstration plate

MSO5000-2RL

Record Length Upgrade to 200MPts

MSO5000-AERO

MIL-STD 1553 Serial Triggering and Analysis

MSO5000-AUDIO

Audio Serial Triggering and Analysis(I2S)

MSO5000-AUTO

Automotive Serial Triggering and Analysis(CAN/LIN)

MSO5000-AWG

Dual Channel 25MHz Waveform Generator

MSO5000-BND

Application Bundle , includes all serial protocol analysis , measurement , and app options

MSO5000-COMP

Computer Serial Triggering and Analysis(RS232/UART)

MSO5000-EMBD

Embedded Serial Triggering and Analysis(I2C , SPI)

MSO5000-FLEX

FlexRay serial bus trigger and analysis (FlexRay)

MSO5000-FPC

Front panel cover

MSO5000-PWR

Integrated Power Analysis

MSO5000-RM

Rack Mounting Kit

NFP-3

Near-field probe

RPA246

Power analysis phase difference correction jig

USB-GPIB

USB-GPIB interface converter

Rigol_MSO5000_Series
