MSO-2104EA Instek Mixed Signal Oscilloscope New

MSO-2104EA Instek Mixed Signal Oscilloscope New

$1,895.25
$1,895.25 $1,995
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • 16 Channel Logic Analyzer and a Dual Channel 25 MHz Arbitrary Waveform Generator
  • Maximum real time sample rate is 1 GSa/s
  • Maximum 10M memory depth and VPO waveform display technology
  • Waveform update rate up to 120,000 wfms/s
  • 8 ” WVGA TFT LCD screen display
  • Maximum 1M FFT provides higher frequency domain resolution measurements
  • High Pass, Low Pass and Band Pass Filter Functions
  • 29,000 segmented memory sections and waveform search function
  • I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
  • Data log function is able to track signal changes up to 100 hours
  • Mask Test Function
  • Network storage function
  • Three-year warranty, excluding probes & LCD display panel
View full details
More Details
Specifications
Datasheets

Standard Accessories

  • Power Cord, Certificate of Calibration,
  • CD-ROM (with Quick Start Guide, User Manual, Programming Manual)
  • GTL-16E, 16-channel logic analyzer probe
  • GTP-100B-4:100 MHz(10:1/1:1)Switchable passive probe (one per channel)
  • GTL-110 BNC-BNC cable (for MSO-2000EA models only)

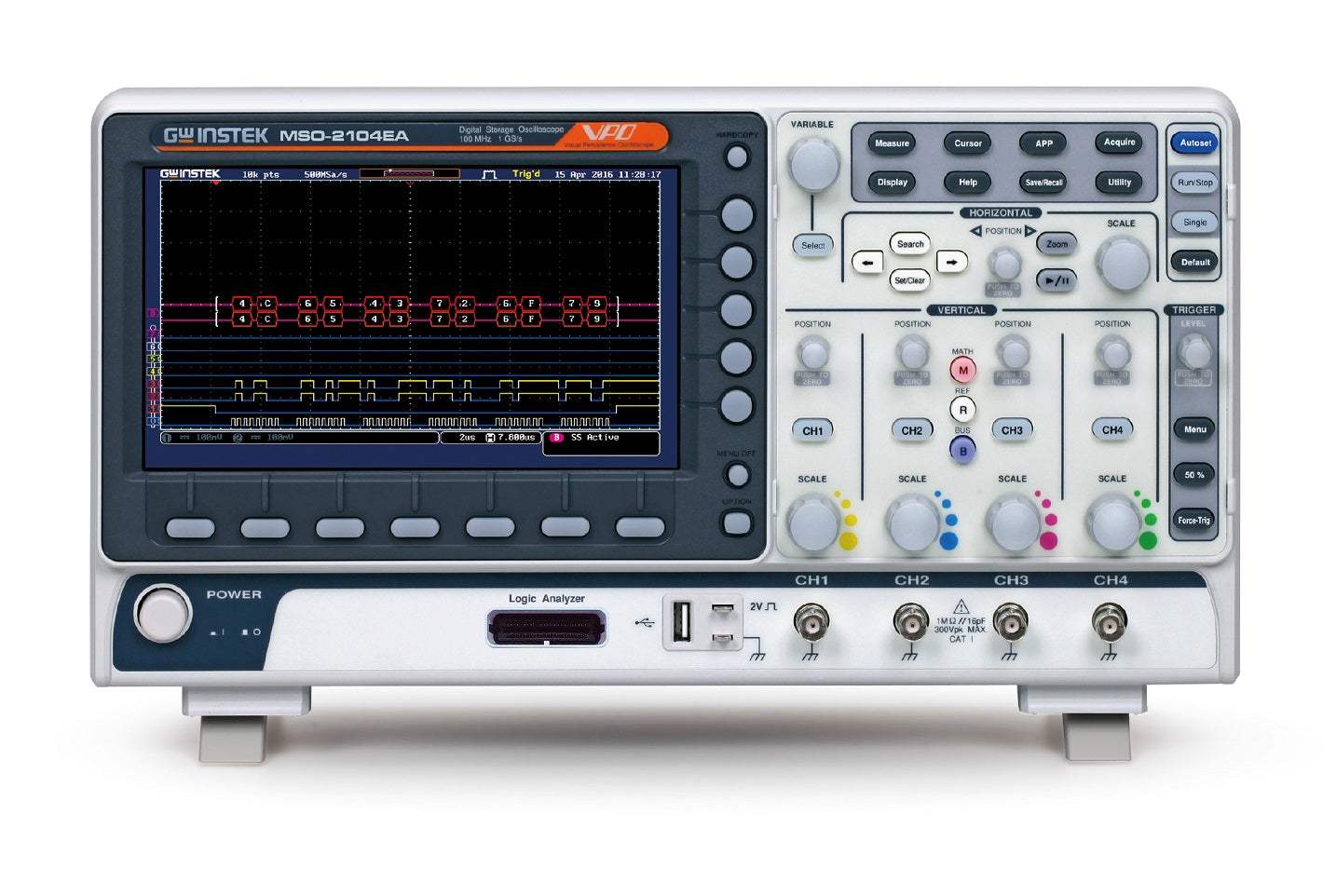

The Instek MSO-2104EA Mixed Signal Oscilloscope offers a 100 MHz Bandwidth, 4 Analog Channels and 16 Digital Channels. The 8-inch 800 x 480 TFT LCD and the minimum 1mV/div vertical range allow the MSO-2000 series to measure complex feeble signals and clearly display measurement results

The MSO-2104EA has a built-in 16-channel logic analyzer and a dual channel 25 MHz arbitrary waveform generator. The MSO-2104EA is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The 16-channel logic analyzer has a memory depth of 10Mpts per channel, which can retrieve more and longer digital signals as well as clearly display digital signals to obtain sufficient information for analysis. The minimum input swing of logic analyzer represents the minimum operating voltage of ±250 mV, which demonstrates that digital channels are highly sensitive with respect to input.

The MSO-2104EA has a built-in dual channel 25 MHz arbitrary waveform generator with the modulation capability and also features 14 bits vertical resolution; sample rate of 200MSa/s; 5 standard output waveforms (Sine, Square, Pulse, Ramp, DC, Noise) and 7 user-defined waveforms (Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac); AM/FM/FSK modulation and sweep function. The user friendly interface is the ideal choice for applications such as circuit simulation and education tests.

Model No

MSO-2104EA

Condition

New

Manufacturer

Instek

Channels

4+16

Frequency

100 MHz

Record length

10 MPts

Sampling rate

1 GS/s

Instek_MSO-2000_Series
