MDO4104C Tektronix Mixed Domain Oscilloscope New

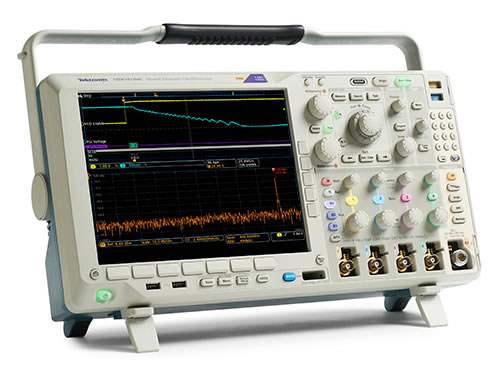

MDO4104C Tektronix Mixed Domain Oscilloscope New

Regular price $34,400
Sale price $34,400 Regular price $34,400
Shipping calculated at checkout.
Required
Optional:
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

 Additional Features:

  • Bandwidth: 1 GHz
  • Channels: 4
  • Sample Rate: 5 GS/s
  • 20 M record length on all channels
  • > 340,000 wfm/s maximum waveform capture rate
  • Performance 6-in-1 integrated oscilloscope with synchronized insights into analog, digital and spectral signals
  • Digital Voltmeter / Frequency Counter (Free with product registration)
  • TPP1000: 1 GHz bandwidth, 10X, 3.9 pF. One passive voltage probe per analog channel
  • Warranty: Three-year warranty covering all parts and labor on the MDO4000C instrument. One-year warranty covering parts and labor on included probes
View full details

Typical Applications:

  • Embedded design
  • Power design
  • EMI troubleshooting
  • Wireless troubleshooting
  • Education
  • Manufacturing Test and Troubleshooting

Spectrum Analyzer (Optional)

  • Frequency range of 9 kHz - 3 GHz or 9 kHz - 6 GHz
  • Ultra-wide capture bandwidth ≥1 GHz
  • Time-synchronized capture of spectrum analyzer with analog and digital acquisitions
  • Frequency vs. time, amplitude vs. time, and phase vs. time waveforms

Arbitrary/Function Generator (Optional)

  • 13 predefined waveform types
  • 50 MHz waveform generation
  • 128 k arbitrary generator record length
  • 250 MS/s arbitrary generator sample rate
  • Logic Analyzer (Optional)
  • 16 digital channels
  • 20 M record length on all channels
  • 60.6 ps timing resolution

Protocol Analyzer (Optional)

  • Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, Ethernet, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, and Audio standards

Digital Voltmeter / Frequency Counter (Free with product registration)

  • 4-digit AC RMS, DC, and AC+DC RMS voltage measurements
  • 5-digit frequency measurements

The MDO4104C has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting. The MDO4104C is completely customizable and fully upgradeable so you can add the instruments you need now–or later.

Model No

MDO4104C

Condition

New

Manufacturer

Tektronix

Channels

4

Frequency

1 GHz

Record length

20 MPts

Sampling rate

5 GS/s

MDO4AFG

Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation

MDO4MSO

16 digital channels; includes P6616 digital probe and accessories

MDO4SEC

Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality

SA0

No Spectrum Analyzer

SA3

Integrated Spectrum Analyzer with frequency range of 9 kHz to 3 GHz

SA6

Integrated Spectrum Analyzer with frequency range of 9 kHz to 6 GHz
