2516B B&K Precision Handheld Digital Oscilloscope New

2516B B&K Precision Handheld Digital Oscilloscope New

$3,750
$3,750 $3,750
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 100 MHz and 200 MHz bandwidth
  • 1 GSa/s sample rate
  • Fully isolated 1000 V CAT II and 600 V CAT III input rating (models 2515B / 2516B)
  • Non-isolated 300 V CAT II input rating (models 2511B / 2512B)
  • 12 Mpts memory depth
  • Serial bus decoding for IIC, SPI, UART, CAN, and LIN protocols
  • FFT plus 7 additional math functions
  • Built-in 6000-count DMM measures DC/AC voltage, DC/AC current, resistance, capacitance, diode, and continuity test
  • Recorder and trend plot functions to log data
  • USB host port for convenient storing and recalling of waveform data, setups, and screenshots on a USB flash drive
  • Standard micro-USB device port for remote PC control
View full details
More Details
Specifications
Datasheets

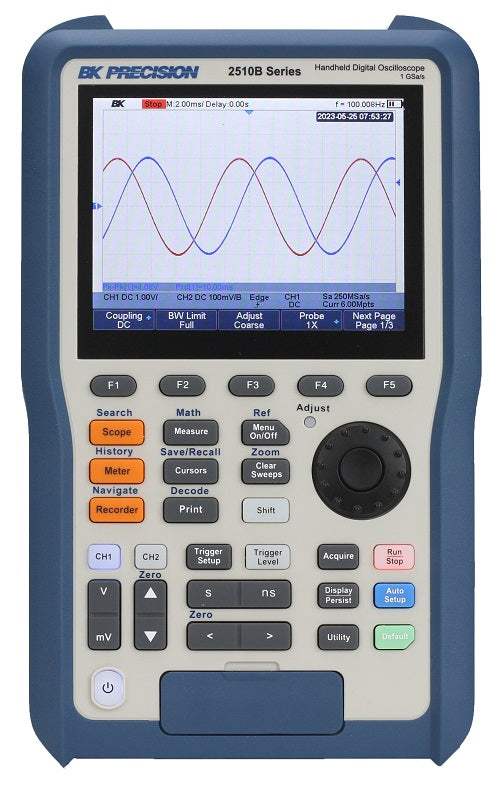

The 2510B Series handheld digital storage oscilloscopes combine floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 100 MHz and 200 MHz bandwidth scopes provide two channels with 1 GSa/s sample rates, 12 Mpts memory depth, 38 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input, and the USB host and device ports.

Model No

2516B

Condition

New

Manufacturer

B&K Precision

Channels

2

Frequency

200 MHz

BK Precision 2510B Series
