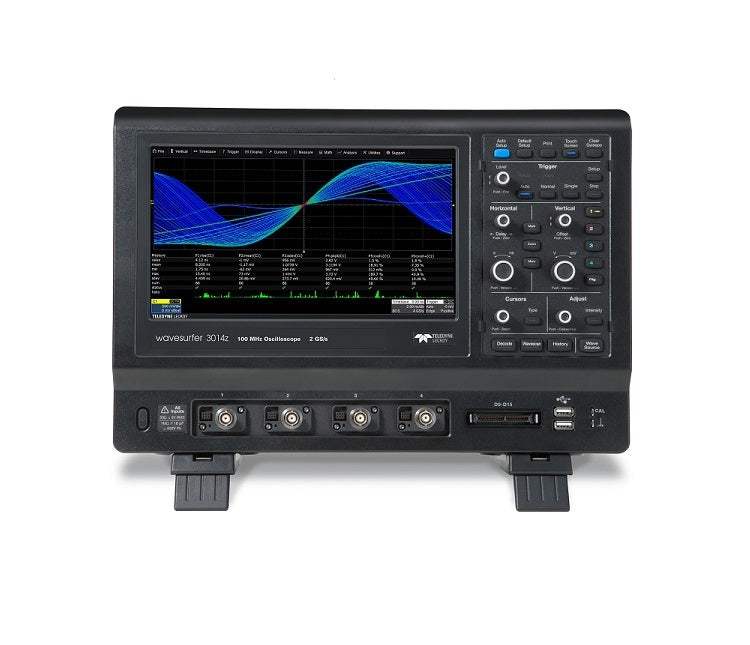

• WAVESURFER 3034Z Teledyne LeCroy Digital Oscilloscope
1 1
New
Earn Loyalty with Rewards
Compare

WAVESURFER 3034Z Teledyne LeCroy Digital Oscilloscope New

WAVESURFER 3034Z Teledyne LeCroy Digital Oscilloscope New

$8,850
$8,850 $8,850
Shipping calculated at checkout.
Optional:
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 350 MHz Bandwidth
  • 4 Channels
  • Up to 4 GS/s sample rate
  • Long Memory – up to 20 Mpts
  • 10.1” capacitive touch screen display
  • Powerful, Deep Toolbox
  • 16 Digital Channel MSO option
View full details
More Details
Specifications
Options
Datasheets

The WaveSurfer 3034z is a 350MHz, four channel Oscilloscopes. It provides the most advanced user interface of any Oscilloscope sold presently through a 10.1" capacitive touch screen. It promotes true versatility with 20 Mpts of memory, multi-instrument capabilities, a powerful deep toolbox and Mixed Signal capability as an option.

MAUI - Most Advanced User Interface

  • Designed for Touch
  • Built for Simplicity
  • Made to Solve

Advanced Anomaly Detection

  • Fast Waveform Update
  • History Mode - Waveform Playback
  • WaveScan - Search and Find

Multi-Instrument Capabilities

  • Protocol Analysis - Serial Trigger and Decode
  • Waveform Generation - Built-in Function Generator
  • Digital Voltmeter and Frequency Counter

Future Proof

  • Upgradeable Bandwidth

Superior User Experience

MAUI is the most advanced oscilloscope user interface. It is designed for touch, built for simplicity, and made to solve.

Biggest Touch Display

A large capacitive touch screen enables accessible and responsive touch operation. The 10.1” display is 30% larger than competitive offerings, providing more waveform viewing area.

Advanced Anomaly Detection

A fast waveform update rate, used in conjunction with history mode, WaveScan, sequence mode, and mask testing facilitates outstanding waveform anomaly detection.

Powerful, Deep Toolbox

The standard collection of math, measurement, debug, and documentation tools provides unsurpassed analysis capabilities.

Model No

WAVESURFER

Condition

New

Manufacturer

Teledyne LeCroy

Channels

4

Frequency

350 MHz

Record length

10 MPts

Sampling rate

4 GS/s

AUDIOBUS TD

Audiobus Trigger and Decode Option for I2S , LJ , RJ , and TDM

AUTO

CAN and LIN Trigger and Decode Option

CAN FDBUS TD

CAN FD Trigger and Decode Option

EMB

I 2C , SPI , UART and RS-232 Trigger and Decode Option

FG

Function Generator (25 MHz) Option

FLEXRAYBUS TD

FlexRay Trigger and Decode Option

MSO

MSO software option and 16 Channel Digital probe leadset

POWER

Power Analysis Option

Promotion

Includes over $8 , 000 in options: MSO , CAN FD , Auto , Audio TD , Embed TD , FLexRay , Power , FG

RACK

Rack Mount Accessory

SOFTCASE

Soft Carrying Case

USB2-GPIB

External USB 2.0 to GPIB IEEE 488.2 adapter

WS3K-MSO

MSO software option and 16 Channel Digital probe leadset
