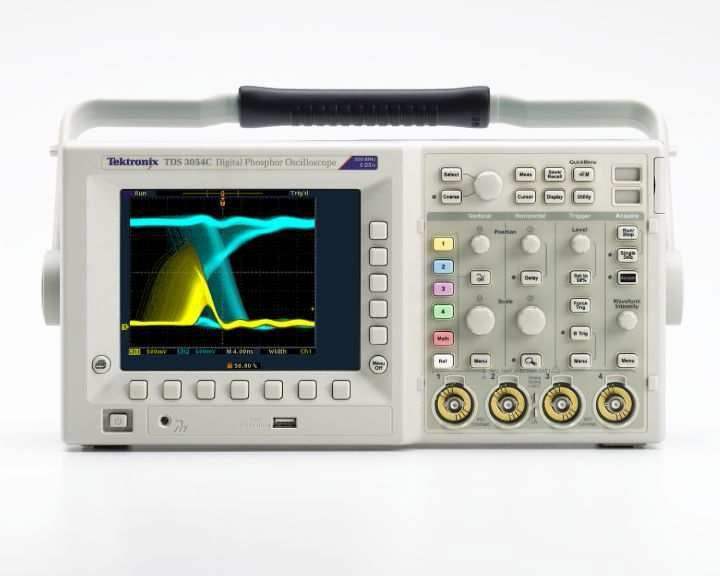

TDS3034C Tektronix Digital Oscilloscope Used

TDS3034C Tektronix Digital Oscilloscope Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Ā

Features:

  • Bandwidth: 300 MHzĀ
  • 4 Channels
  • 2.5 GS/s Maximum Real-time Sample Rate, with sin(x)/x Interpolation
  • 10 k standard record length on all channels
  • 3,600 wfms/s continuous waveform capture rate
  • Suite of advanced triggers
  • Front panel USB host port for easy storage and transfer of measurement data
  • 25 automatic measurements
  • FFT standard
  • Multiple language user interfaceĀ
  • WaveAlertĀ® automatic waveform anomaly detection
  • TekProbeĀ® interface supports active, differential and current probes for automatic scaling and units
  • Lightweight design for easy transport
  • Optional internal battery operation provides up to three hours without line power
Share on
View full details
More Details
Specifications
Options
Datasheets

Applications:

  • Digital Design and Debug
  • Video Installation & Service
  • Power Supply Design
  • Education and Training
  • Telecom Mask Testing
  • Manufacturing Test
  • General Bench Testing

Specifications:

  • 300 MHz
  • 2.5 GS/s
  • 10 kPts

Ā

The TDS3034C offers fast waveform capture rates on a continuous basis that save you time by quickly revealing the nature of faults, so advanced triggers can be applied to isolate them.Ā Real-time intensity grading highlights the details about the history of a signal's activity, making it easier to understand the characteristics of the waveforms you've captured. Unlike other comparable oscilloscopes, the history remains even after the acquisition has been stopped.

Ā

Model No

TDS3034C

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

300 Hz

Record length

10 kPts

Sampling rate

2.5 GS/s

TDS3GV

Communications Module

TDS3VID

Extended Video Analysis Module
