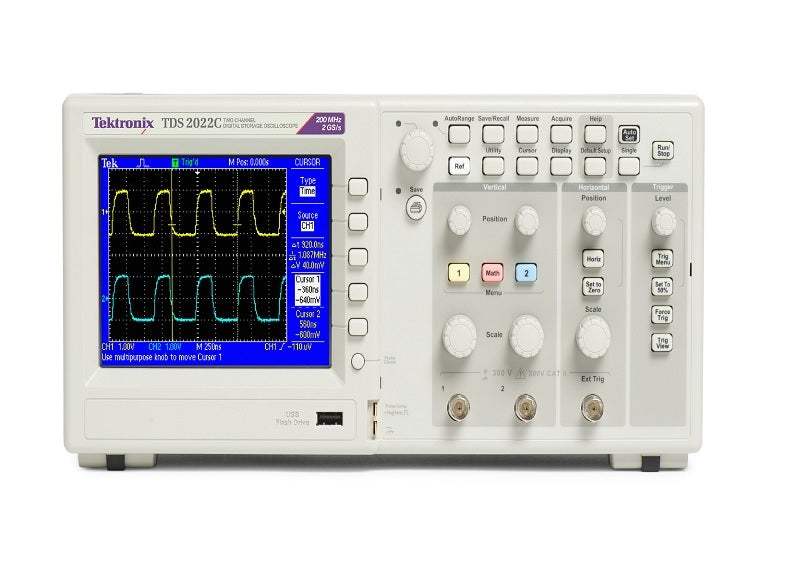

TDS2022C Tektronix Digital Oscilloscope Used

TDS2022C Tektronix Digital Oscilloscope Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • 200 MHz Bandwidth Models
  • 2-channel Model
  • Up to 2GS/s Sample Rate on All Channels
  • 2.5k point Record Length on All Channels
  • Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger
  • 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
  • Built-in Waveform Limit Testing
  • Automated, Extended Data Logging Feature
  • Digital Real-time Sampling
  • Autoset and Signal Auto-ranging
  • Built-in Context-sensitive Help: More than 25 help screens and more than 80 important topics
  • Probe Check Wizard coaches you through probe compensation and checks your probe scaling
  • Multiple-language User Interface
  • 5.7in.(144mm) Active TFT Color Display
  • Small Footprint and Lightweight–Only 4.9in. (124mm) Deep and 4.4lb. (2kg)
Share on
View full details
More Details
Specifications
Datasheets
Manuals

The Tektronix TDS2022C 200 MHz, 2 Channel, 2GS/s Digital Storage Oscilloscope provides you with afford able performance in a compact design. Packed with standard features – including USB connectivity, 16 automated measurements, limit testing, datalogging, and context-sensitive help– the Tektronix TDS2022C oscilloscope help you get more done, in less time. With up to 200 MHz bandwidth and 2GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. Tektronix proprietary sampling technology provides real-time sampling with a minimum of 10X over sampling on all channels, all the time to accurately capture your signals. Sampling performance is not reduced when using multiple channels.

Model No

TDS2022C

Condition

Used

Manufacturer

Tektronix

Channels

2

Frequency

200 MHz

Record length

2.5 kPts

Sampling rate

2 GS/s
